Overview

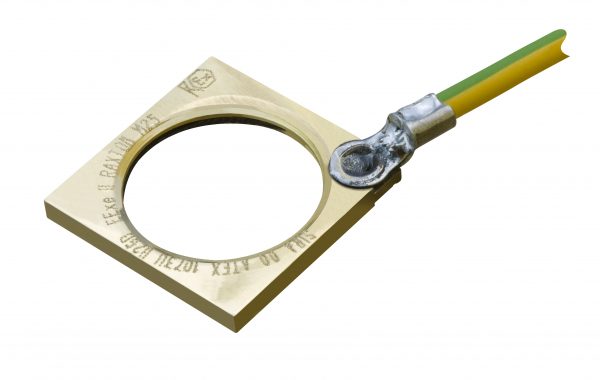

Threaded earth plates (type DK) are designed to ensure earth continuity when terminating brass glands into non-metallic enclosures. The additional use of a locknut is recommended to ensure pressure is maintained with the wall enclosure.
Overview
Threaded earth plates (type DK) are designed to ensure earth continuity when terminating brass glands into non-metallic enclosures. The additional use of a locknut is recommended to ensure pressure is maintained with the wall enclosure.
Certifications and Compliances
Code of Protection Categories
ATEX: II 2GD, Ex e II
Compliance Standards
ATEX EN 50014, EN50018, EN 50019, EN50281-1-1
Certificate Details
ATEX: Sira 00ATEX1073U
TEMPERATURE
The item is classified as a component and is therefore not given a
temperature rating.
| Product dimensions – threaded earth plates | ||
| Threaded earth plate | Length (mm) | Earth lead x 300mm (mm2) |
| M16 | 22.0 | 2.5 |
| M20 | 30.0 | 2.5 |
| M25 | 32.0 | 4.0 |
| M32 | 38.0 | 6.0 |
| M40* | 50.8 | 10.0 |
| M50* | 63.5 | 16.0 |
| M63* | 76.0 | 25.0 |
| M75 | 102.0 | 25.0 |
| *M40 and above are industrial only Other sizes / theads are available upon request. |
Raxton DK Threaded Earth Plates Datasheet
