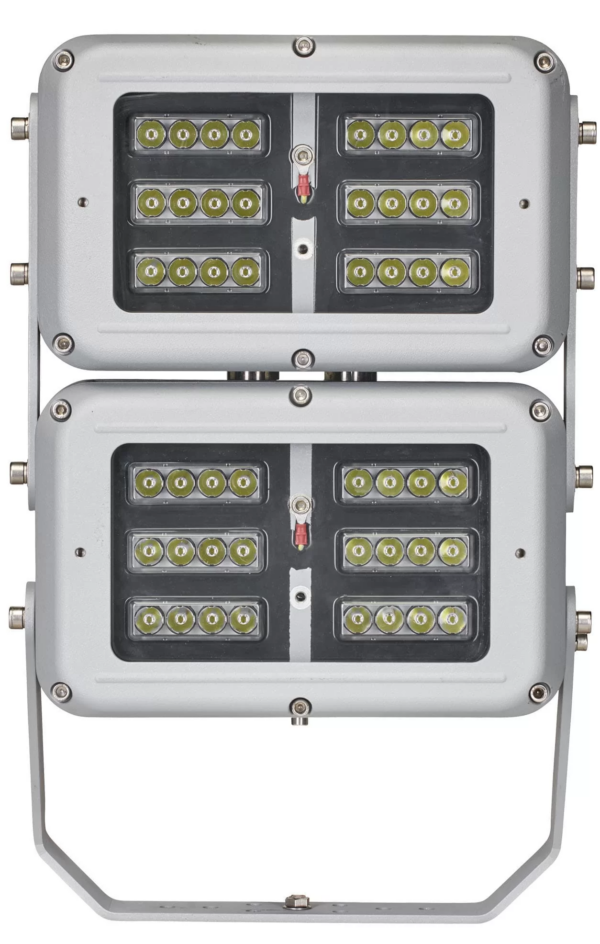

Raytec Spartan Flood Zone 1/21

SPARTAN FLOOD SPX-FL
Zone 1/21, 8,450lm – 16,900lm

Both the LED and PSU modules are easily accessible for maintenance and inspection
Removable PSU housing allows power supply to be fitted remotely

Please enter a quantity

Share this product:

Raytec Spartan Flood Zone 1/21

The SPARTAN Flood range is designed for hazardous area environments which require high-performance, reliable, White-Light illumination. Available with emergency battery back-up and delivering from 8,450 to 16,900 lumens, the FL Flood range uses Raytec’s field-proven, long-life LED technology to ensure a lifetime of 10 years+. All SPARTAN luminaires come with an industry-leading 5-year warranty.

Bespoke LED.

Raytec are specialists in LED and SPARTAN Flood has been specifically designed around the LEDs with a bespoke housing for optimum performance and reliability.

Choice of Beam Patterns..

Available with a range of circular and elliptical beam patterns, from 10° to 120°. Raytec’s VARIO technology allows the beam pattern to be modified on-site.

EMERGENCY BACK-UP.



FL24 and FL48 emergency variants deliver up to 90 minutes of emergency battery back-up, and can also deliver up to 100% output on emergency for shorter duration if required.

EASY MAINTENANCE.

A unique modular design means key components, such as the LED and PSU modules, are easily accessible for straightforward maintenance and inspection.

FL FLOOD VARIANTS.



SPX-FL24 – Circular beam pattern

Part Codes Description
SPX-FL24-W-1010 SPARTAN Zone 1 Flood, 24 LED, White-Light, 10°x 10° beam
SPX-FL24-W-3030 SPARTAN Zone 1 Flood, 24 LED, White-Light, 30°x 30° beam
SPX-FL24-W-5050 SPARTAN Zone 1 Flood, 24 LED, White-Light, 50°x 50° beam
SPX-FL24-W-120120 SPARTAN Zone 1 Flood, 24 LED, White-Light, 120°x 120° beam

SPX-FL24 – Elliptical beam pattern

Part Codes Description
SPX-FL24-W-3510 SPARTAN Zone 1 Flood, 24 LED, White-Light, 35°x 10° beam
SPX-FL24-W-6025 SPARTAN Zone 1 Flood, 24 LED, White-Light, 60°x 25° beam
SPX-FL24-W-8030 SPARTAN Zone 1 Flood, 24 LED, White-Light, 80°x 30° beam
SPX-FL24-W-12050 SPARTAN Zone 1 Flood, 24 LED, White-Light, 120°x 50° beam

SPX-FL48 – Circular beam pattern

Part Codes Description
SPX-FL48-W-1010 SPARTAN Zone 1 Flood, 48 LED, White-Light, 10°x 10° beam
SPX-FL48-W-3030 SPARTAN Zone 1 Flood, 48 LED, White-Light, 30°x 30° beam
SPX-FL48-W-5050 SPARTAN Zone 1 Flood, 48 LED, White-Light, 50°x 50° beam
SPX-FL48-W-120120 SPARTAN Zone 1 Flood, 48 LED, White-Light, 120°x 120° beam

SPX-FL48 – Elliptical beam pattern

Part Codes Description
SPX-FL48-W-3510 SPARTAN Zone 1 Flood, 48 LED, White-Light, 35°x 10° beam
SPX-FL48-W-6025 SPARTAN Zone 1 Flood, 48 LED, White-Light, 60°x 25° beam
SPX-FL48-W-8030 SPARTAN Zone 1 Flood, 48 LED, White-Light, 80°x 30° beam
SPX-FL48-W-12050 SPARTAN Zone 1 Flood, 48 LED, White-Light, 120°x 50° beam
FL24 FL24 EM25 FL48 FL48 EM25
Input 110-254V 50/60Hz AC only, 18-48V AC and 18-69V DC, 12V AC/DC 110-254V 50/60Hz AC only 110-254V 50/60Hz AC only, 18-48V AC and 18-69V DC, 12V AC/DC 110-254V 50/60Hz AC only
Power 68W 71W 136W 139W
Termination Incoming terminal block suitable for looping 4 core 4mm² cable (6mm² available)
Power Factor >0.95
Cable Entries 2xM20 as standard (other entries available upon request), dispatched complete with one ATEX/IECEx approved blanking plug



FL24 FL24 EM25 FL48 FL48 EM25
Burning Position Universal
IP Rating IP66 & IP67
Temperature Range -20°C to +55°C -20°C to +55°C -20°C to +55°C -20°C to +55°C
Weight 8kg (17.6lbs) 10Kg (22lbs) 16kg (35.2lbs) 20Kg (44lbs)
Enclosure Marine grade aluminium epoxy powder coated, toughened glass, all external fasteners and brackets are marine grade stainless steel
Unit Colour Silver (RAL 9006) Silver (RAL 9006)
Red (RAL3024) – Emergency cover
Silver (RAL 9006) Silver (RAL 9006)
Red (RAL3024) – Emergency cover
Mounting U bracket – complete with locking screwv
Emergency Backup
FL24 EM25 BL48 EM25
Emergency Duration Up to 90mins at 50% power – other options available Up to 90mins at 25% power – other options available
Emergency Battery Ni/Cd 12V 4.5Ah
Emergency Charge Time 20 hours
FL24 FL24 EM25 FL48 FL48 EM25
ATEX Rating ATEX UKCA and IEC Ex rated for Gas and Dust
Hazardous Area Rating Zone 1 (Gas), Zone 21(Dust)
Certificates CML13ATEX3007, IEC Ex CML 14.0001 & CML 21UKEX3099
Gas II 2 G D, Ex e mb IIC T4 Gb, Ta= Up to -52°C to +55°C (emergency variants have a lower ambient of -20°C only)
Dust Ex tb IIIC T82°C Db Ta= Up to -52°C to +55°C IP66/IP67
ABS Certificate # ABS Certificate # 15-LD1364539-1-PD
FL24 FL24 EM25 FL48 FL48 EM25
Lumen Output on Mains 8,450 16,900
LED Type Platinum Elite SMT LEDs
Number of LEDs 24 48
CRI 80+
Colour Temperature 6,000K+

Raytec Spartan Flood Zone 1/21 Datasheet
