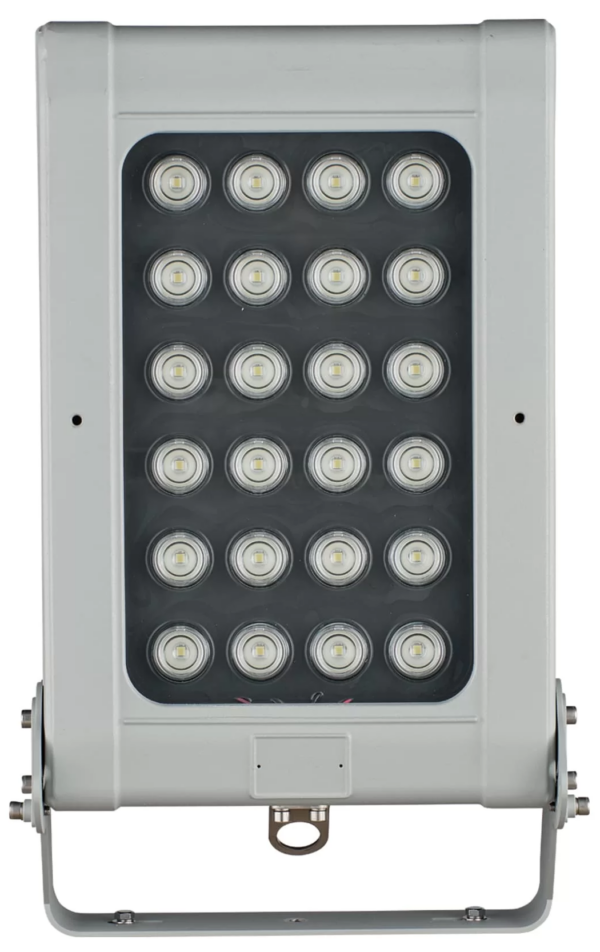

Raytec Spartan High-Power Flood Zone 1/21

SPARTAN High Power Flood, SPX-HPFL

Zone 1/21, 20,000lm – 30,000lm

High lumen output up to 29,000 lumens and a range of beam patterns to effectively light up large open areas such as oil rigs.

Please enter a quantity

Share this product:

Raytec Spartan High-Power Flood Zone 1/21

The SPARTAN High Power Flood range is an ATEX LED flood light designed to illuminate large, open spaces within hazardous area environments. Available with a range of different outputs from 20,000 to 30,000 lumens, the High Power Flood uses Raytec’s field-proven, long-life LED technology to ensure a lifetime of 10 years+. All SPARTAN luminaires come with an industry-leading 5-year warranty.

Power and Performance.

High lumen output up to 30,000 lumens and a range of beam patterns to effectively light up large open areas such as oil rigs.

SPARTAN ATEX LED Floodlight – High lumen output from 5,000 to 15,000 lumens, along with a range of different beam patterns to effectively light up large open areas such as oil rigs.

Retrofittable and Modular.

ATEX LED flood light designed to directly replace traditional discharge light sources up to 400W SON. The modular design allows easy access to key components and the ability to mount the PSU remotely

EASY TO MAINTAIN.

The PSUs and control gear are located in an easy to access rear compartment for straightforward maintenance. A SMART access wiring system allows for safe and efficient installation.

HPFL 20KHPFL 25KHPFL 30K
Input150-264V 50/60Hz AC/DC
(110V variant available – please contact Raytec)
Power200W250W300W
TerminationIncoming terminal block suitable for looping 4 core 4mm² cable (6mm² available)
Power Factor>0.95
Cable Entries2xM20 as standard (other entries available upon request), dispatched complete with one ATEX/IEC Ex/UKEX approved blanking plug



HPFL 20KHPFL 25KHPFL 30K
Burning PositionUniversal
IP RatingIP66
Temperature Range-50°C to +50°C
Weight23.5kg (51.8Ibs)
EnclosureMarine grade aluminium epoxy powder coated, toughened glass, all external fasteners and brackets are marine grade stainless steel
Unit ColourSilver (RAL 9006)
MountingStirrup bracket
HPFL 20KHPFL 25KHPFL 30K
ATEX RatingATEX, UKEX and IEC Ex rated for Gas and Dust
Hazardous Area RatingZone 1 (Gas), Zone 21(Dust)
Zone 21 Only version available
CertificatesZone 1/21 Version:
CML17ATEX1148
IECEx CML 17.0074
CML21UKEX1102
Zone 21 Only Version:
CML 18ATEX3161
IECEx CML 18.0087
CML21UKEX3107
GasGas Group IIB version:
II 2 G D
Ex db eb mb IIB T4 Gb
Gas Group IIB + H2 version:
II 2 G D
Ex db eb mb IIB+H2 T4 Gb
Ta = -50˚C to + 50˚C
DustEx tb IIIC T104°C Db
Ta=-50°C to +50°C
ABS Certificate #ABS Certificate # 20-1990083-PDA
HPFL 20KHPFL 25KHPFL 30K
Beam Patterns30° x 30° or 60° x 60° or 90° x 90°
Lumen Output19,423lm24,278lm29,134lm
LED TypePlatinum Elite SMT LEDs
No. of LEDs24
CRI70+
Colour Temperature5,700K

Raytec Spartan High-Power Flood Zone 1/21 Datasheet
