Raytec Spartan Linear WL168 Zone 2/22

SPARTAN SPZ Linear, SPZ-WL168
LED Zone 2/22 Luminaire

Emergency variants are available to provide 3 hours of battery back-up at 25% power. The Intelligent Emergency system self-tests the battery and communicates via a tri-colour LED indicator.

Please enter a quantity

Share this product:

Raytec Spartan Linear WL168 Zone 2/22

The SPARTAN Linear WL168 Zone 2 range is designed to retrofit conventional fluorescent fittings or for use in new hazardous area installations. Designed to provide extreme levels of durability, and with a unique modular design which makes maintenance quick and easy. All SPARTAN luminaires are designed and manufactured in the UK and come with an industry-leading 5-year warranty.

Ultra-Powerful.

SPARTAN Linear WL84 Zone 2 delivers industry-leading power and performance with an efficacy of up to 142 lumens per watt on standard variants.

Robust and Durable.

Housed in marine grade aluminium with stainless steel fasteners and brackets, SPARTAN Linear is IP66 and IP67 rated and can survive in the most extreme environments.

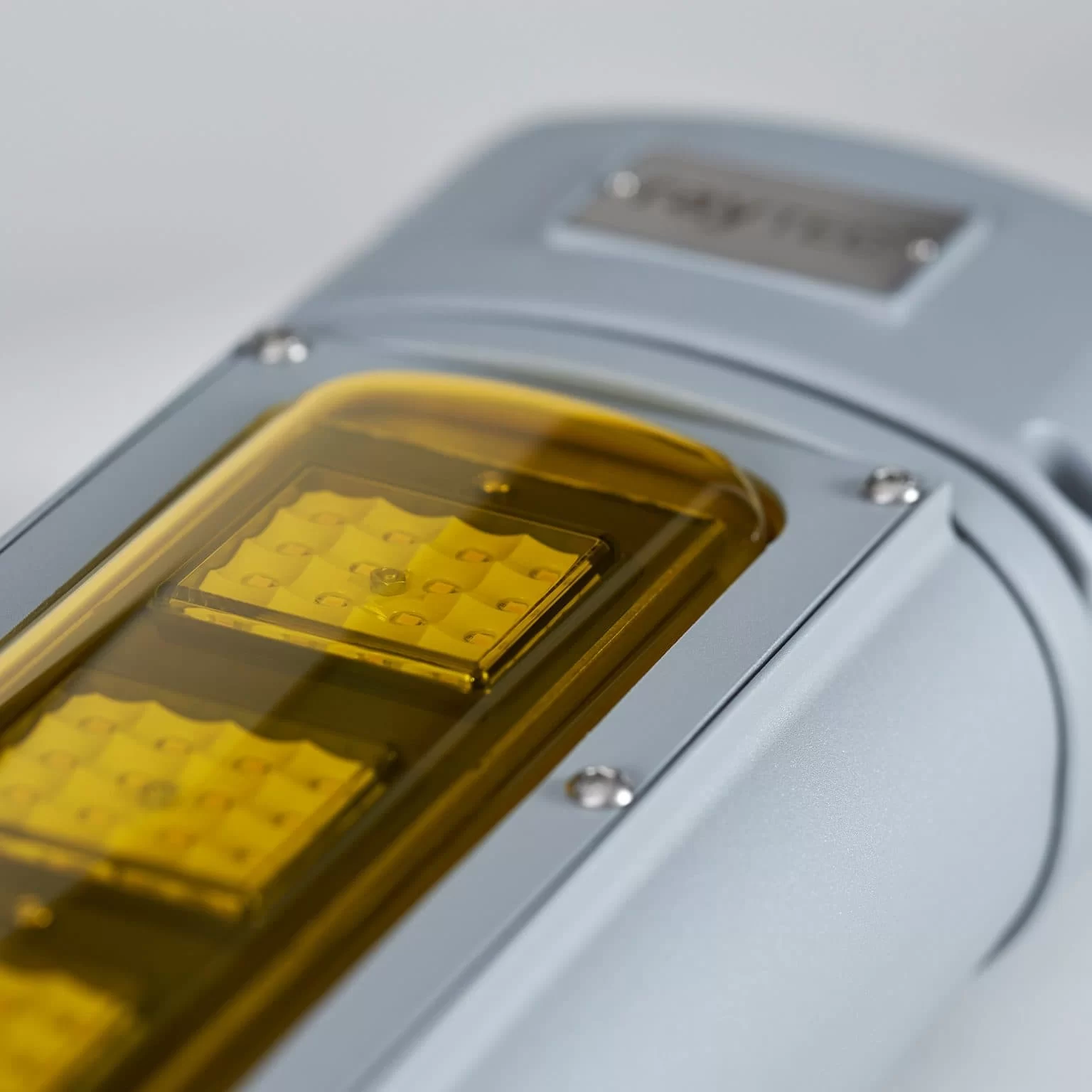

Bespoke LED.

Raytec are specialists in LED and SPARTAN Linear has been specifically designed around the LEDs with a bespoke housing for optimum performance and reliability.

Choice of Optics.

Available with a choice of different optics to suit a wide range of applications, including asymmetric patterns for aisle, corridor and perimeter installations.

INTELLIGENT EMERGENCY.

Raytec Spartan Linear WL168 Zone 2/22 Emergency
Raytec Spartan Linear WL168 Zone 2/22 Emergency

Emergency variants are available to provide 3 hours of battery back-up at 25% power. The Intelligent Emergency system self-tests the battery and communicates via a tri-colour LED indicator.

WL168 VARIANTS.

SPARTAN Linear is available in a number of different variants to suit a wide range of applications.

Standard Part Number Configurations
Part NumberDescription
SPZ-WL168EXNA WL168 LED LINEAR LIGHT
SPZ-WL168/DEXNA WL168 LED +DIFFUSED LENS
SPZ-WL168-1500EXN WL168 LED LINEAR LIGHT-5FT
SPZ-WL168-EMX25EXN 4FT LED EM.LINEAR 3HR -EMX
SPZ-WL168-HOEXEC 4FT HIGH O/P LED LINEAR
WL168WL168 EmergencyWL168 Essential
InputStandard: 110-254Vac 50/60Hz, 110-254Vdc *
Low voltage: 18-48V AC and 18-69V DC
Extra low voltage: 12V AC/DC
110-254V 50/60Hz AC only110-254Vac 50/60Hz
110-254Vdc *
Power49W56W49W
TerminationIncoming terminal block suitable for looping 4 core 4mm² cable
Power Factor>0.95
Cable Entries2xM20 cable entries at both ends, through wired as standard. Dispatched complete with three ATEX/IEC Ex/UKEX approved blanking plugs2xM20 cable entries at both ends, through wired as standard. Dispatched complete with three ATEX/IEC Ex/UKEX approved blanking plugs2xM20 cable entries at one end. Loop in loop out as standard. Dispatched complete with one ATEX/UKEX/IEC Ex approved blanking plugs

*T6 variant is AC Only

WL168WL168 EmergencyWL168 Essential
ATEX RatingATEX UKEX and IEC Ex rated for Gas and Dust
Hazardous Area RatingZone 2 (Gas), Zone 22 (Dust)
(Zone 21 Version also available : Zone 2 (Gas) Zone 21/22 (Dust))
CertificatesATEX: CML15ATEX4138
IECEx: IECExCML15.0068
UKEX: CML21UKEX4104
(Zone 21 version)
ATEX: CML16ATEX1130
IECEx: IECExCML16.0052
UKEX: CML21UKEX1100
GasGas: II 3 G D
Ex ec mc IIC T4 Gc
Ta= -40°C to+60°C
(-20°C to+50°C for emergency variants)
DustEx tc IIIC T80°C Dc
Ta= -40°C to+60°C
(-20°C to+50°C for emergency variants)
Dust (Zone 21 Version)II 2 D Ex tb IIIC T80°C Db
Ta= -40°C to+60°C
(-20°C to+50°C for emergency variants)
ABS Certificate Number# 20-1990083-PDA
WL168WL168 EmergencyWL168 Essential
Lumen Output on Mains7048
LED TypePlatinum Elite SMT LEDs
Number of LEDs160
CRI80+
Colour Temperature6500K standard

Download Raytec Spartan Linear WL168 Datasheet

Download Raytec Spartan Linear WL168 High Output Datasheet
