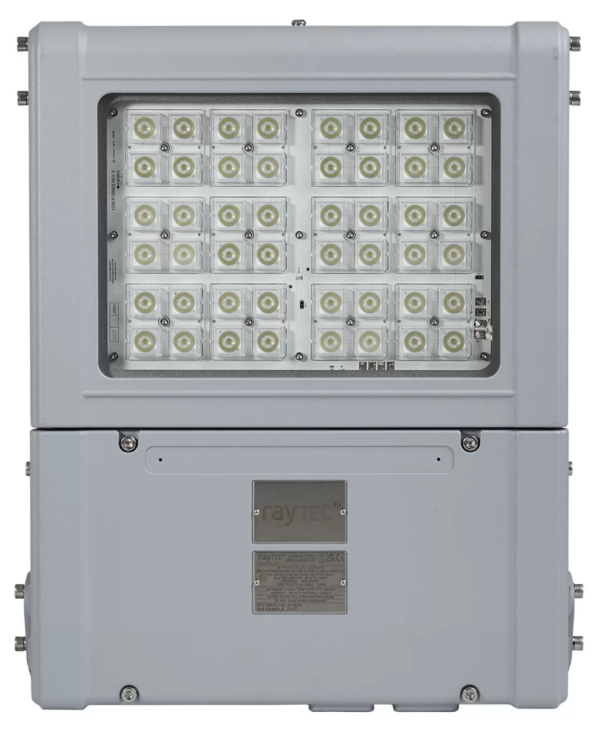

Raytec Spartan Mid-Power Flood Zone 2/22

SPARTAN Mid Power Flood, SPZ-MPFL

Zone 2/22, 5,000lm – 15,000lm

High lumen output up to 15,000 lumens, designed to directly replace traditional discharge light sources up to 250W SON.

Please enter a quantity

Share this product:

Raytec Spartan Mid-Power Flood Zone 2/22

The Mid-Power SPARTAN ATEX LED Floodlight range is designed to illuminate large, open spaces within hazardous area environments. Available with a range of different outputs from 5,000 to 15,000 lumens, the Mid-Power Flood uses Raytec’s field-proven, long-life LED technology to ensure a lifetime of 10 years+. All SPARTAN luminaires come with an industry-leading 5-year warranty.

Built Powerful.

SPARTAN ATEX LED Floodlight – High lumen output from 5,000 to 15,000 lumens, along with a range of different beam patterns to effectively light up large open areas such as oil rigs.

Built Flexible.

The modular design allows easy access to key components and the ability to mount the PSU remotely, making installation and maintenance easy.

Built Tough.

Constructed using tough, marine-grade aluminium and IP66 & IP67 rated, the MPFL is designed to withstand even the most challenging conditions.

SECONDARY OPTICS.

Secondary optics are utilised to deliver a range of different beam patterns. This ensures light is targeted efficiently and there’s no loss of light output on wider beam angle variants.

MPFL 5K MPFL 7.5K MPFL 10K MPFL 12.5K MPFL 15K
Input 110-277V 50/60Hz AC only
Power 40W 60W 80W 100W 120W
Termination Incoming terminal block suitable for looping 4 core 4mm² cable
Power Factor >0.95
Cable Entries 2xM20 as standard (other entries available upon request), dispatched complete with one ATEX/IEC Ex/UKEX approved blanking plug



MPFL 5K MPFL 7.5K MPFL 10K MPFL 12.5K MPFL 15K
Burning Position Universal
IP Rating IP66 & IP67
Temperature Range -40°C to +60°C
Weight 13.2kg (29.1lbs)
Enclosure Marine grade aluminium epoxy powder coated, toughened glass, all external fasteners and brackets are marine grade stainless steel
Unit Colour Silver (RAL 9006)
Mounting Stirrup bracket
MPFL 5K MPFL 7.5K MPFL 10K MPFL 12.5K MPFL 15K
ATEX Rating ATEX, UKEX and IEC Ex rated for Gas and Dust
Hazardous Area Rating Zone 2 (Gas), Zone 22(Dust)
Certificates CML21ATEX3320 & IEC Ex CML21.0038 or CML21UKEX3321
Gas II 3 G D Ex ec mc IIC T4 Gc Ta= -40°C to+60°C
Dust Ex tc IIIC T90°C Dc Ta= -40°C to+60°C
MPFL 5K MPFL 7.5K MPFL 10K MPFL 12.5K MPFL 15K
Lumen Output 5,149lm 7,663lm 10,298lm 12,873lm 15,325lm
LED Type Platinum Elite SMT LEDs
No. of LEDs 24 24 48 48 48
CRI 70+
Colour Temperature 5,700K

Raytec Spartan Mid-Power Flood Zone 2/22 Datasheet
