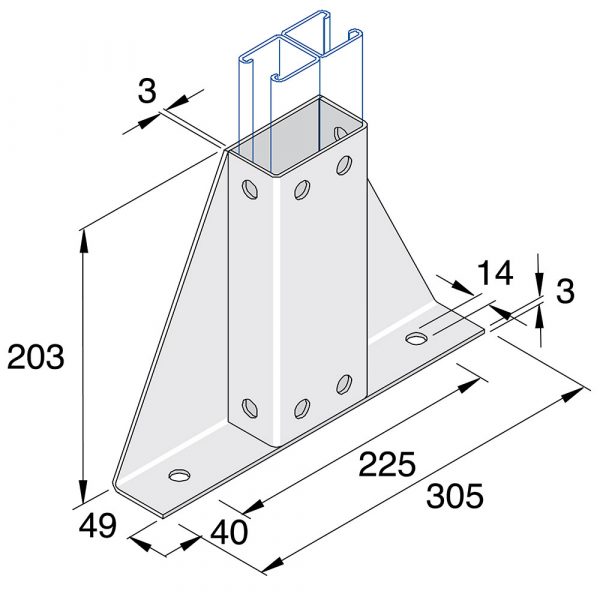

Standard Dimensions:
The following are standard dimensions unless otherwise stated.
All dimensions subject to commercial tolerance.
- Hole Size: 14mm diameter
- Hole Spacing (From End):
20mm from end of fitting - Fitting Width: 41mm
Dimensions shown are for mild steel components only. Dimensions for stainless steel components may vary.
Part No. | Fin. | Wt. |
P2348-S2 | HG | 2.15 |
P2348-S2 | SS | 2.10 |
