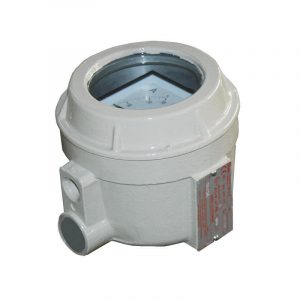

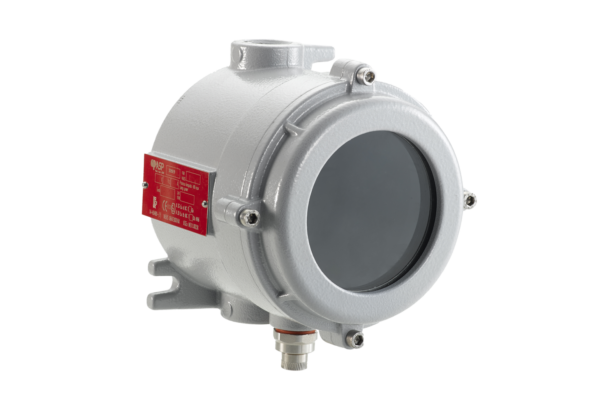

Bartec Feam EMH9 instrument housing

Ex d housing for zone 1/2 – 21/22

Cable Systems provide an in-house Design, Assembly & Certification service for this item.

  • IIC
  • Aluminium
  • Round-shape
  • window with transparent tempered glass
  • for analogical and digital measuring instruments

Please enter a quantity

Share this product:

Description

Flameproof Ex d Instrument housing BARTEC EMH9 series is designed to be installed in industrial plants, where potential hazardous atmospheres occur.
These areas are either classified as zone 1 and 2 or as zone 21 and 22.

The instrument housings are normally used to enclose analogical and digital measuring instruments.

The internal measuring instruments, supplied on request, can be:
– Analog measuring instrument
– Digital measuring instrument
– CCTV cameras and systems
– Twilight relays

Protection class IP 66 (IEC/EN 60529)
Material Copper free aluminium light alloy
Weight see data sheet
Dimensions see data sheet

Marking

ATEX:
(Ex II 2 G) Ex d IIC T6 Gb
(Ex II 2 D) Ex tb IIIC T85°C Db IP66

IECEx:
Ex d IIC T6 Gb
Ex tb IIIC T85°C Db IP66

Ambient Temperature

-40 °C to +60 °C as standard

Bartec Feam EMH9 instrument housing Datasheet
