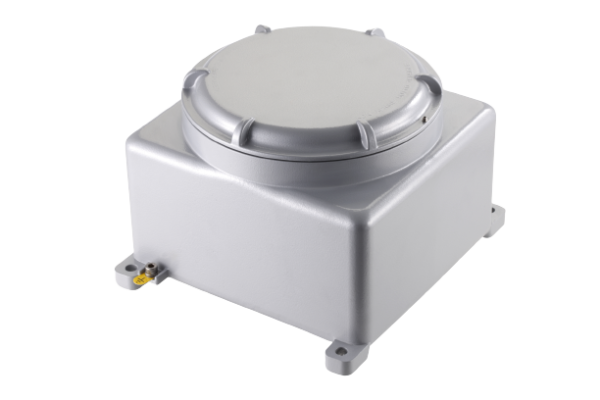

Bartec Feam GUB empty enclosure

Ex d IIC aluminium enclosure for zone 1/2 – 21/22

Cable Systems provide an in-house Design, Assembly & Certification service for this item.

  • IP66
  • possibility of glass window

Please enter a quantity

Share this product:

Description

Flameproof enclosures BARTEC C or GUB series are designed to be installed in industrial plants, where potential hazardous atmospheres occur.
These areas are either classified as zone 1 and 2 or as zone 21 and 22.
These enclosures are designed to contain regular industrial electrical components or equipment on the mounting plate like fuses, transformers, circuit breakers, relays, PLC etc. and to be fully integrated in the hazardous area as control or distribution panel.

Protection class IP 66 (IEC/EN 60529)
Type 1, Type 4, Type 4X
Material Enclosure material: Copper free aluminium alloy ( 0.1% copper)
Surface treatment: External powder type painted RAL9006
Internal anti-condense painting RAL2004 (optional)
Enclosure lid: Bolts in stainless steel AISI304 (A2)
Internal mounting plate : Aluminium
Weight see data sheet
Dimensions see data sheet
Accessories O-Ring silicon rubber gasket
Drain and breather valves (optional)
Hinged lid : On long side (standard)
On shorth side (optional)
Quantity of cable entries see data sheet
Voltage Max. rated voltage : 13kV (AC) / 750V (DC)
Current Max. rated current : 2000A
Imapct test 7 Joule for metallic parts of enclosure (Passed)

Marking

ATEX:
(Ex II 2 G) Ex db IIC T6…T3
(Ex II 2 G) Ex db [ia/ib IIA or IIB or IIC Ga/Gc] IIC T6..T3
(Ex II 2 D) Ex tb IIIC T85°C…T200°C
(Ex II 2 D) Ex tb [ia Da/ib/ic Dc] IIIC T85°C..T200°C

IECEx:
Ex db IIC T6…T3 Gb
Ex db [ia IIA or IIB or IIC Ga] IIC T6…T3 Gb
Ex db [ib IIA or IIB or IIC] IIC T6…T3 Gb
Ex db [ic IIA or IIB or IIC Gc] IIC T6…T3 Gb
Ex tb IIIC T85°C…T200°C Db
Ex tb [ia Da] IIIC T85°C…T200°C Db
Ex tb [ib] IIIC T85°C…T200°C Db
Ex tb [ic Dc] IIIC T85°C…T200°C Db

Ambient Temperature

-60 °C to +80 °C (standard)
