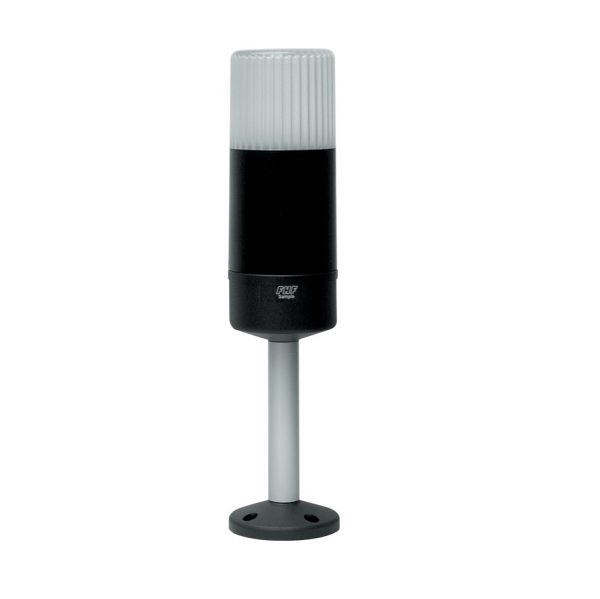

FHF ActiveLine GH1 Multicolour Weatherproof LED Beacon

optical/optical-acoustic signalling devices in LED-technology.


Share this product:


ActiveLine is designed to indicate various operating states of machines and systems. The possible signalling colours green, yellow, red, blue and white are all shown in one single light element. Each colour can be preset to continuous light, blink light or flash light. The light is generated by use of light emitting diodes. The model with sounder can also generate a penetrating signalling tone, with four adjustable sound levels.


  • 5 different signal colours in just one lamp
  • 3 signalling modes (flash-, blinking-, permanent)
  • Space-saving installation
  • Extreme service life thanks to LED technology
  • Low power consumption
  • Version with integrated sounder
Area classificationWeatherproof
Operating temperature-25°C to +60°C
Ingress protectionIP54
MaterialEnclosure & footbracket: thermoplastic
Stand: aluminium
Lens: polycarbonate
EntriesMale thread bush M16
Voltage24Vdc, 230Vac
Light sourceMulticolour LED
OptionsWith/without sounder, flash functions, LED colour

FHF ActiveLine GH1 Multicolour Weatherproof LED Beacon Datasheet
