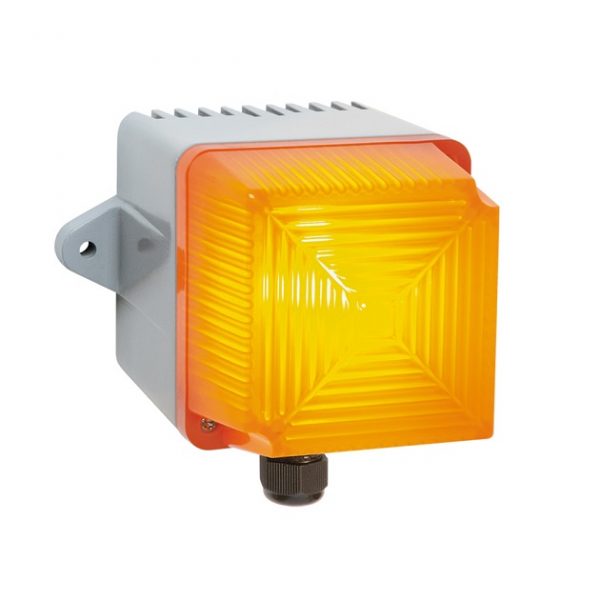

FHF BLK-Super-LED Weatherproof LED Beacon

Very light-intense optical signalling device for indoor and outdoor use in LED technology.

Clear

Share this product:

Overview

In particularly noisy environments it is often necessary to use optical signals for warning and signalling. The BLK-Super-LED signalling light permits clearly recognisable signals, even in cases where there is an extreme influence of extraneous light. The stable housing is executed in protection class IP 65 and is suitable for indoor and outdoor installation. The light is available in 5 different cap colours.

Design
The weatherproof-coated die-cast aluminium housing with a cooling element and a pressure compensation valve for preventing condensation bears a ribbed cap made of impact-resistant plexiglass on its upper side. With its M20 cable entry, the light is equipped for line diameters of 8-12 mm. The light is to be operated in 3 modes (continuous, blinking and flashing). 2 different light intensities are available (1200 or 2000 lumens).


  • Protection degree IP 65
  • Compensation valve to prevent condensation water
  • Robust aluminium housing
  • Very light-intense LED technology
  • High lifetime
  • 3 different modes (continuous, blinking or flash light)
  • 2 different light intensity (1200 lm, 2000 lm)
General
Area classificationWeatherproof
Operating temperature-55°C to +75°C
Ingress protectionIP65
MaterialAluminium
EntriesUp to 2 x M20
Weight1.4kg
Voltage24Vdc, 230Vac
Light sourceLED
OptionsFlash function, lens colour

FHF BLK-Super-LED Weatherproof LED Beacon Datasheet
