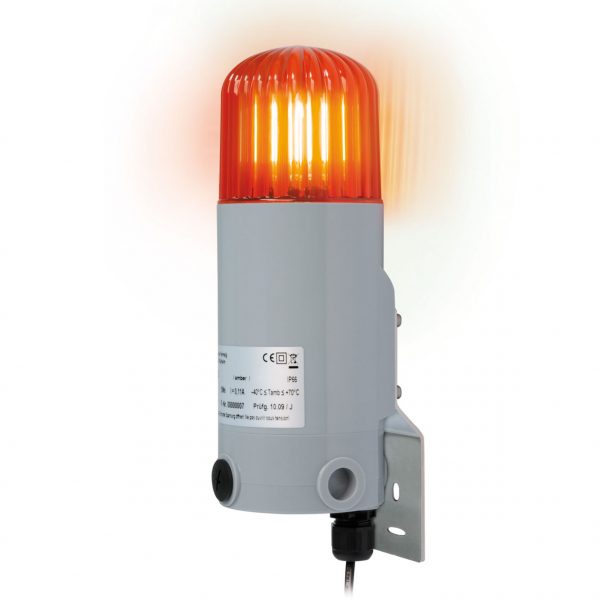

FHF BLE 15 Joule Weatherproof Beacon

High performance strobe light with 15 Joule flash energy for outdoor applications.

Clear

Share this product:

Overview

The BLE 15 Strobe Light is designed for warning and signalling purposes in indoor and outdoor facilities. Due to the high flash energy of 15 joule, the signal is clearly visible even in direct sunlight. Moreover, the BLE 15 produces a powerful 360° signalling effect.

The housing of the BLE 15 consists of grey, impact-resistant plastic fitted with an impact-resistant dome which is available in different colours.
A flange-mounted stainless steel wall bracket allows for an easy mounting. An integrated pressure compensation valve prevents a condensation within the housing, which often causes problems in outdoor applications. The strobe light is available with the standard supply voltages 24 VDC or 230 VAC.

Features

  • Protection class IP 66
  • Flash energy 15 joule
  • Flash frequency 1 Hz
  • Suitable for continuous operation
General
Area classificationWeatherproof
Operating temperature-40°C to +50°C
Ingress protectionIP66
MaterialPolycarbonate
Entries1 x cable gland M20 & 2 x blank plugs M20
Weight1.0kg
Voltage24vdc, 230Vac
Light sourceXenon
OptionsLens colour

FHF Weatherproof Strobe Light BLE 15 Datasheet
