The Filoseal HD Fire duct sealing kit is a heavy-duty, fire-resistant engineering solution designed to provide maximum fire, gas, and water-tight protection for cable entries in ducts and boreholes. Specially developed for critical infrastructure, power distribution networks, and industrial substations, this kit prevents the passage of fire, smoke, running water, and dangerous gases through building penetrations.
Engineered for large or heavy power cables, Filoseal HD Fire utilizes high-density, fire-retardant hexagonal tubes and intumescent sealants. In the event of a thermal event or direct flame exposure, the intumescent properties activate to expand and seal voids, delivering up to 4 hours of certified fire resistance according to European and international standards (EN 1366-3).
Key Features of Filoseal HD Fire
- 4-Hour Fire Resistance: Certified fire-stopping protection for cable duct penetrations under EN standards.
- Gas & Water Tight: Withstands high water pressure and prevents dangerous gas migration inside ducts.
- Heavy Cable Support: High-density backing tubes ensure proper cable separation and prevent sagging in heavy power bundles.
- Re-enterable & Resistant: Allows future cable additions while remaining resistant to Hydrocarbons, H2S, and Methane.
Application & Installation

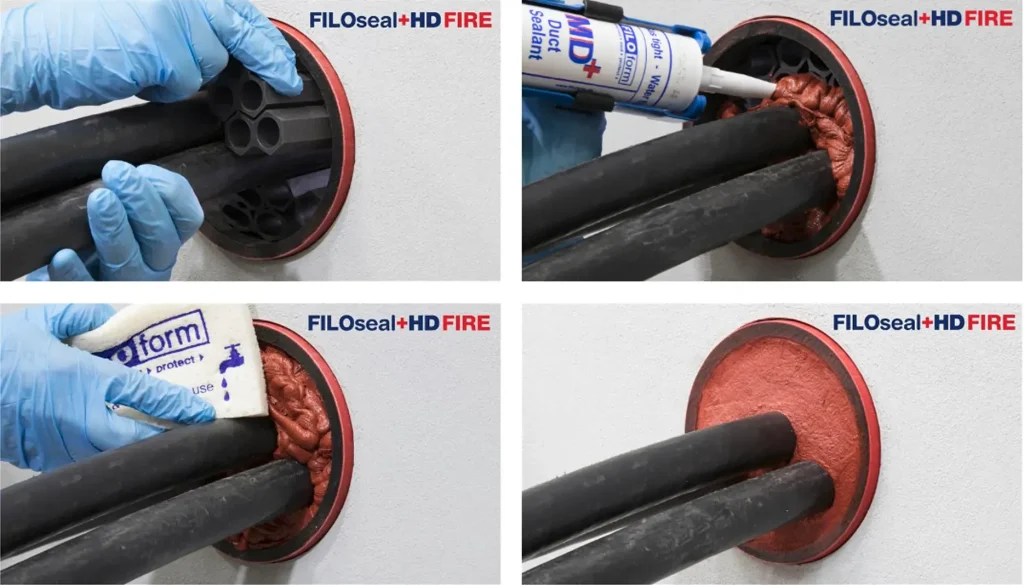

Ensure the duct area is free of standing water before applying the backing assembly. For active water leaks prior to sealing, use the Running Water Kit to divert flow during installation. Apply the mastic using a heavy-duty dispenser like the Ultraflow Cartridge tool and smooth the finished surface with a damp Finishing Sponge.
| SKU |
Product name |
Duct diameter min-max (mm) |
Order unit |
| 280070 |
FiloSeal+HD FIRE – 75mm > 110mm |
Ø 110 max. |
per piece |
| 280080 |
FiloSeal+HD FIRE – 125mm > 160mm |
Ø 160 max. |
per piece |
| 280090 |
FiloSeal+HD FIRE – 180mm |
Ø 180 max. |
per piece |
| 280100 |
FiloSeal+HD FIRE – 200mm |
Ø 200 max. |
per piece |
| 280110 |
FiloSeal+HD FIRE – 225mm |
Ø 225 max. |
per piece |
| 280120 |
FiloSeal+HD FIRE – 250mm |
Ø 250 max. |
per piece |
This video provides an overview of the FiloSeal+HD Fire system, showing how it is installed and detailing its key technical features.

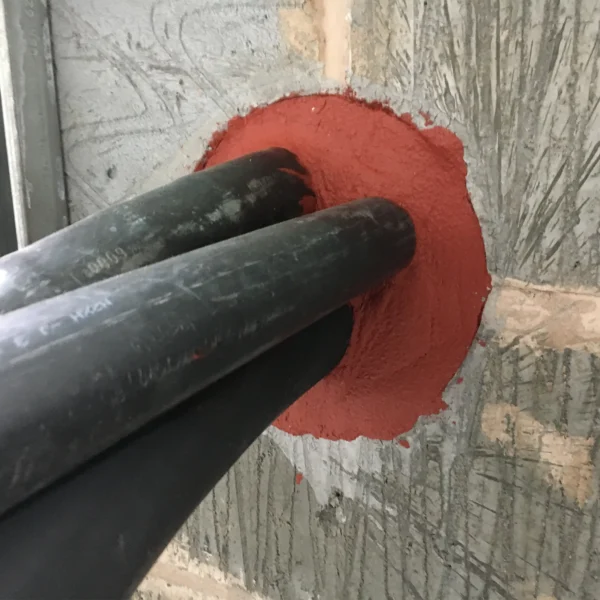

FiloSeal+HD FIRE provides a strong support system using the fire resistant hexagonal blocks made of our specially formulated material called ‘Formite’ which builds up like a honeycomb structure. FiloSeal+HD FIRE is suitable for sealing empty or any cable configuration or pipes contained in one duct and also allows easy re-entry of the seal to add or remove cables or pipes as required.
The Filoform duct sealing system FiloSeal+HD FIRE uses our fire-resistant MD+ sealant which is easily applied from a standard skeleton gun. The high quality, one component, flexible sealant “MD+” is based on a silicon compound that cures with air (Humidity).
After application and full curing the thixotropic MD+ forms a plastic elastomer mass with special qualities effectively sealing and bonding, while providing a high level of durability.

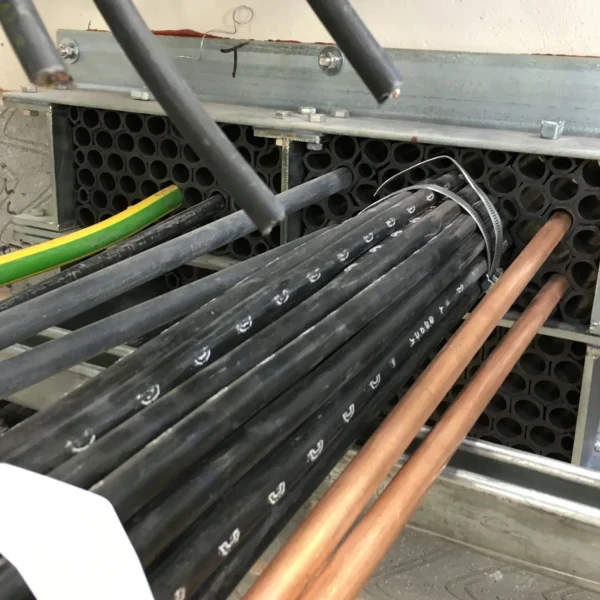

FiloSeal+HD FIRE is very easy to apply regardless of the type of cable scenario in the cable ducts as it uses strong, but flexible hexagonal blocks to support the cable and provide a strong backing for the seal
The unique design of the hexagonal blocks makes positioning and separation of the cables very simple while also providing a strong backing for the MD+ to be applied on.
- Fire resistant – tested to BS EN1366-3 2009
- Fire resistant – tested to AS1530.4-2014 (Australian / New Zealand fire standard)
- Tested to London Underground – LUL S1085
- Tested to European rail applications – BS EN 45545-2:2013
- Tested to French rail standard CIt NF F16-101
- Tested to Smoke index – ISO 5659-2:2012
- Tested to Oxygen index – BE EN ISO 4589-2:1999 (High Oxygen index)
- WIMES Compliant (3.02 2013 6.4.3.2 b)
- Flexible, one component fire resistant adhesive and sealing compound in a cartridge – (310ml)
- Kits are complete with backing and mastic to fill an empty duct of the quoted kit size
- High levels of Gas and Water tightness
- Excellent adhesion, applicable to all common building materials
- Resistant against Water, Alkaline, Chemical agents
- Resistant to termites (Mastotermes Darwiniensis) Northern Australian termites
- Resistant to Rats
- Resistant to Hydrogen Sulphide / Methane and many other Gases (NedLab)
- Non-corrosive
- Solvent-free
- Shock absorbing
- Non-toxic, neutral and almost odourless
- Also suitable for limiting the EX-zones during transitions (observe chemical resistance)
- Complies with 2011 NEC Articles 225.27, 230.8, 300.5(G), 300.7 (A) on Raceway Seals, and 501.15 (B)(2)
- Suitable for any shaped duct/borehole/opening
- Quick and easy installation
- A complete kit
- Seals all know materials, PVC & PE sheathed cables, PILC, (HD) PE pipes
- Engineered duct sealing solution
- Suitable for renovations, can be installed retrospectively
- Over 25 years of operational experience
Kits are complete with backing and mastic to fill an empty duct of the quoted kit size.
| Density |
1.2 gr/cm³ |
|
| Pressure resistance |
up to 2 bar |
|
| Pulling Force |
100kg (1000 newtons) |
|
| Bend Test |
10xd at 45º, with 1 bar pressure |
|
| Flow |
< 2mm |
ISO 7390 |
| Colour |
red-brown |
|
| Skin over time (23C/55%RH) |
± 15 minutes |
|
| Curing |
3 mm / 24 hours |
|
| Hardness |
30 shore A |
DIN 53505 |
| Elongation |
100% |
DIN 53504 |
| Tensile strength |
0.8 N/mm² |
DIN 53504 |
| Operating temperature |
+5°C tot +40°C |
|
| Temperature resistance |
-40°C tot +120°C |

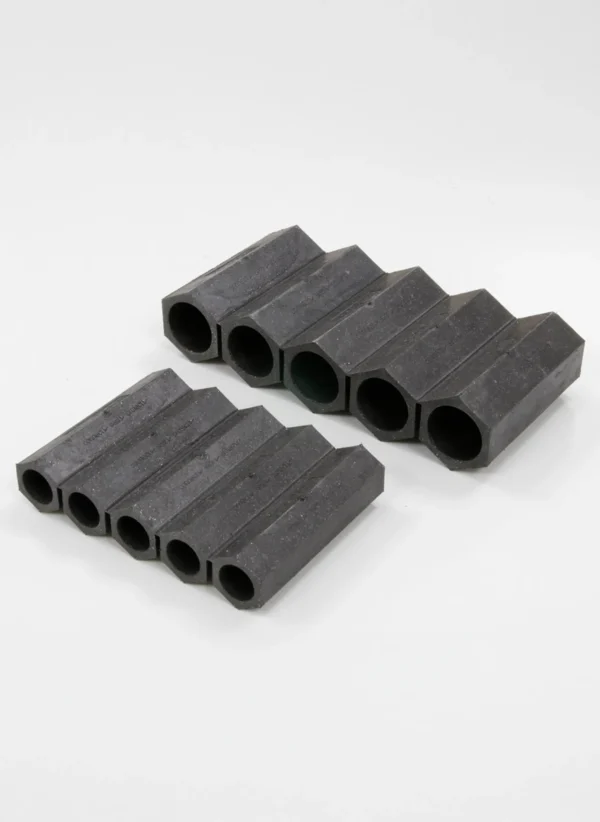

Formite hexagonal blocks
- Material – Mixture of substances (Non Hazardous) – graphite based
- Resistant to humidity & atmospheric influences
- Free of organic solvents
- Zero halogen
- Colour – Black / gray
- Properties – Flexible
Small hexagonal block
Dimensions single tube is O/D = 18mm I/D = 11.5mm, Length 60mm
Large hexagonal block
Dimensions single tube is O/D = 27mm I/D = 18.5mm, Length 60mm
