Filoseal Pro

FILOseal Pro is designed to offer a quick, easy to use and versatile solution for gas and watertight sealing of one or multiple cables/conduits in ducts or boreholes.

  • Ease of use: no extra tools needed, ready to use solution, no need for mixing or preparation before use
  • Versatility: Adapted to a large number of applications, for one or multiple cables
  • Reliability: Meets the German standard vp601 for gas and water tightness
  • Efficiency: Sealing is effective in less than 15 minutes

Please enter a quantity

Share this product:

FILOseal Pro is designed to offer a quick, easy to use and versatile solution for gas and watertight sealing of one or multiple cables/conduits in ducts or boreholes.

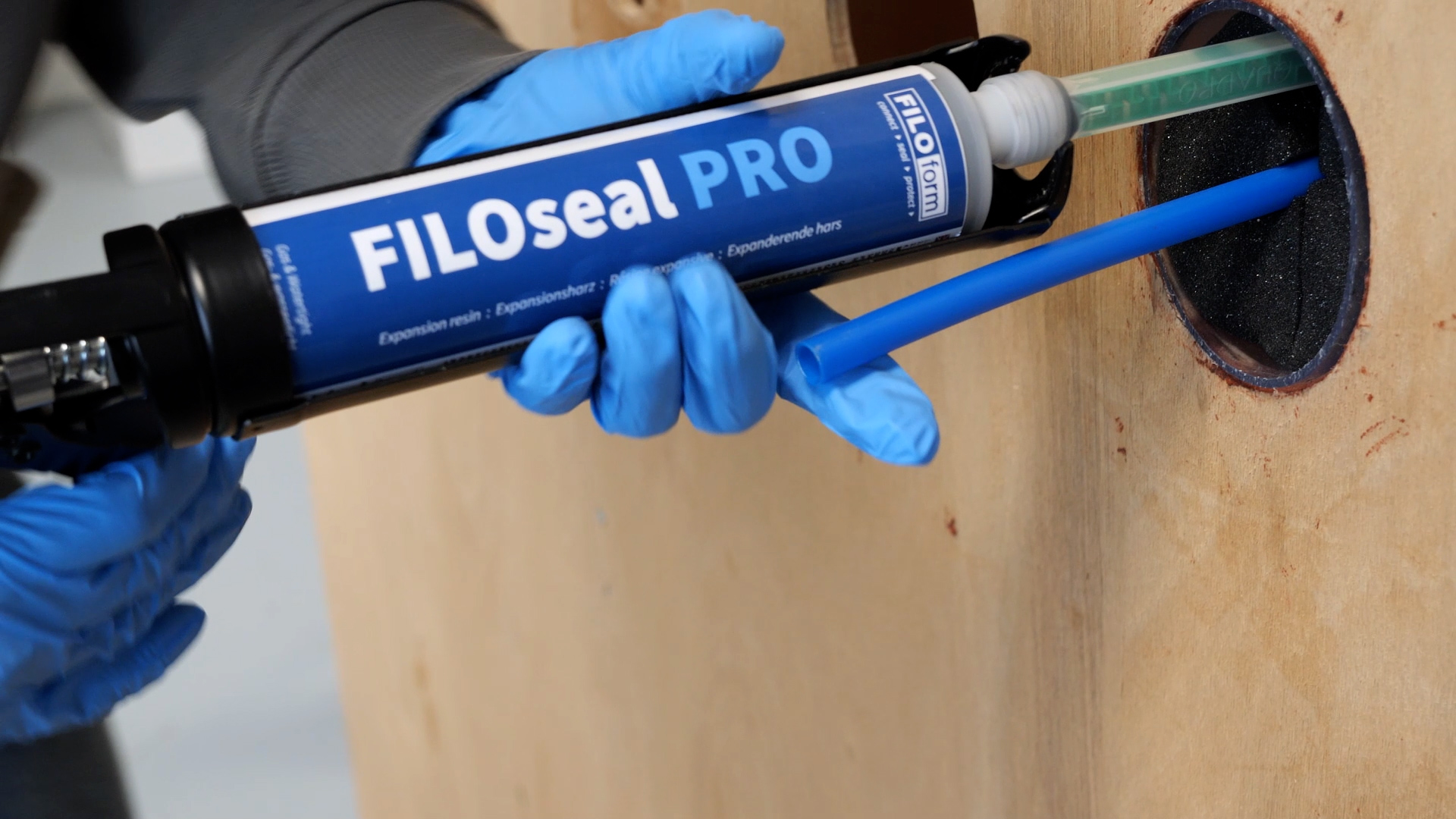

This duct sealing system is highly flexible in use and can be installed in vertical and horizontal duct or boreholes and is suitable for boreholes drilled at any angle. There is no need for extra tools, just a standard Caulking Gun is required.

This simplicity comes along with a great sealing efficiency as FILOseal Pro meets the German standard DVGW VP-601 for Gas and Water tightnes

Applications

FILOseal PRO has been designed for sealing, fixing and filling a wide variety of applications in construction, telecom and energy, examples are:

    • Duct seals with cables and pipes.
    • Entry into buildings.
    • Finishing of openings to ensure water and gas tightness.



FILOseal Pro can be installed in temperatures from 5°C (41°F). In colder temperatures, expansion can be slower but will expand and cure over a more extended time. Expansion takes about 8-10 minutes at temperature ranging between 15-20°C
Foam yield per cartridge 1.6 liter for 280ml
Type of dispenser Standard sealant version
Thermal stability Short-term 650 °C, 30 Min. Long-term –40 °C to +90 °C
Processing temperature: Min. +5 °C, Max. +30 °C, Ideal +15 °C to +25 °C
Functional strength After 15 Min. (20 °C)
Final strength After 60 Min. (20 °C)
Start expansion (sec.) 50-70
Finish expansion (sec.) 480-600
Curing time (min) 15
Compression Strength (10%) 1000 KPa
Foam Density 180 kg/m³
Shelf Life 24 months
Gas tightness 2 bar
Certification VP 601 approved

Instructions for use

  • Ensure that surfaces which come in contact with FILOseal PRO is free of lubricants and particle matter. Sanding to create texture will improve adhesion quality.
  • The gap should be a minimum of 6 mm. material so that the foam can enter the opening.
  • Fix the static mixer to the cartridge after removing the nozzle.
  • Place the cartridge is the dispenser. Any standard sealant dispenser can be used.
  • The resin is not homogeneous for the first 2 pulls of the trigger. Ensure this is collected is a small bag and disposed off correctly. A uniform mixture color is the indication that its homogenous and suitable for use.
  • If the contents are not fully used, the cartridge can be sealed with cap and reused with a new static mixer.
