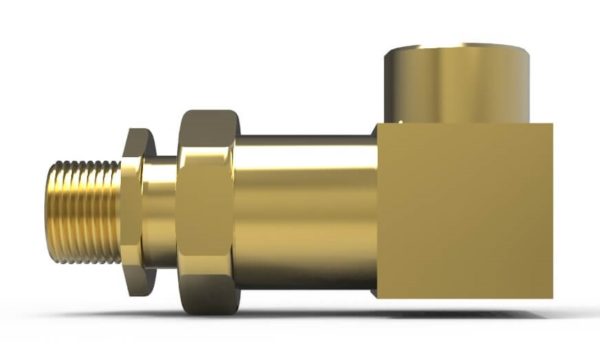

Hawke 493 Swivel 90° Elbow

Flameproof Exd / Increased Safety Exe / Dual Certified ATEX – IECEx

Swivel 90° Elbow

Clear

Share this product:

Flameproof Exd / Increased Safety Exe / Dual Certified ATEX – IECEx Swivel 90° Elbow

  • M16 to M75 as standard.
  • Other parallel male thread options available on request, including BSPP, PG, ET and NPSM.
  • NPT female threads can also be supplied in sizes ranging from ½” to 3″.
  • Integral Silicone O Ring seal.

The 493 is manufactured in Brass, Nickel Plated Brass, Steel, Nickel Plated Steel and Stainless Steel.

General
ApplicationSuitable for use in Zone 1, Zone 2, Zone 21, Zone 22 and
mining applications
Ingress ProtectionIP66
MaterialBrass (Standard), Nickel Plated Brass, Steel, Nickel Plated
Steel and Stainless Steel
SeriesAdaptors
Certifications and Compliance
Certified Listed
  • ATEX
  • IECEx
  • CSA
Hazardous Rating(s)
  • Exe IMb
  • Exd IMb
  • Exe IIC Gb
  • Exd IIC Gb
  • Extb IIIC Db
Industry Standard(s)
  • IEC/EN 60079-0
  • IEC/EN 60079-1
  • IEC/EN 60079-7
  • IEC/EN 60079-31



Hawke 493 Swivel 90° Elbow Datasheet
