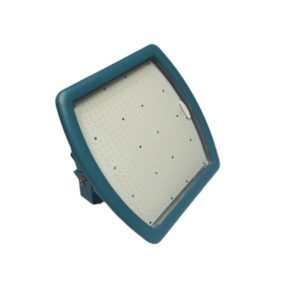

Petrel Midi LED Area Floodlight

Midi LED Area Floodlight, Zone 1,21,2 & 22


Share this product:

The brand new LED Area Floodlight range is a highly efficient luminaire that boasts a class leading light output from 5,000 to 12,500 Lumens (Subject to variant).

Certified for use in Zone 1, 21, 2, 22 this is a modern and versatile range of luminaires. The high quality corrosion resistant aluminium body gives excellent durability in any Zone 1 & 2 hazardous environment. The LED light engine provides a long service life which is virtually maintenance free. All products in the range are offered with a light engine warranty of up to 5 years. The whole range offers industry leading performance in terms of lumen per watt efficacy.

  • Low maintenance LED light source
  • Industry leading performance in terms of lumen per watt efficacy
  • Rated to IK10 (subject to variant)
  • High quality corrosion resistant aluminium alloy body
  • Durable construction
  • Long service life with light engine warranty of up to 5 years
  • Virtually maintenance free
  • Steel swivel mounting bracket (Stainless Steel option available on request)
  • A simple and robust design ensuring that the product is easy to install and use
  • Supplied with tempered glass lens as standard with optional chemical and abrasion resistant polycarbonate lens

Ordering Information:

Part Number Description Light Output Power
ALED3/G/Z1/086 300mm Frame Zone 1 Glass Lens 10,500lm 86W
ALED3/P/Z1/086 300mm Frame Zone 1 Polycarbonate Lens 10,000lm 86W
ALED3/G/Z2/086 300mm Frame Zone 2 Glass Lens 12,500lm 86W
ALED3/P/Z2/086 300mm Frame Zone 2 Polycarbonate Lens 11,750lm 86W
ALED3/G/IND/086 300mm Frame Industrial Glass Lens 12,500lm 86W
ALED3/P/IND/086 300mm Frame Industrial Polycarbonate Lens 11,750lm 86W


Specifications & Options
Material Corrosion resistant aluminium alloy with tempered glass lens. Abrasion and chemical resistant hard coated
polycarbonate lens available as an option
Cable entries 2 x M20
Electrical connections 4mm2 cage clamp for single or multi-stranded conductors
Light source High Efficiency, maintenance free, long life LED array
Light output Z1 Various ranging up to 10,500lm @86W
Light output Z2 Various ranging up to 12,500lm @86W
Supply voltage (s) 120V- 240V AC 50/60 Hz as standard
Installation / Mounting Steel swivel mounting bracket
Control gear Integral within the luminaire
Dimensions 300mm x 300mm x 270mm (As per diagram overleaf)
Wattage 86W (Lower wattages available)
Weight 8kg
Specifications & Options
Label Marking Z1 @
II 2 G Ex eb mb IIC T4 Gb
II 2 D Ex tb IIIC T135°C Db
Label Marking Z2 @
II 3 G Ex ec mc IIC T4 Gc
II 3 D Ex tc IIIC T135°C Dc
Label Marking Z2 @
II 3 G Ex ec mc IIC T5 Gc
II 3 D Ex tc IIIC T100°C Dc
Ambient range
-40°C to +55°C (T4)
-40°C to +49°C (T5) Zone 2
No.s Z1
CML 21UKEX31015X
IECEx CML 17.0018X
No.s Z2
CML 21UKEX31016X
IECEx CML 17.0018X
Zoned areas Zones 1, 21, 2, 22
IP rating IP66 & IP67
IK rating IK8+ Glass Lens
IK10 Polycarbonate Lens

Petrel Midi Area Light Datasheet
