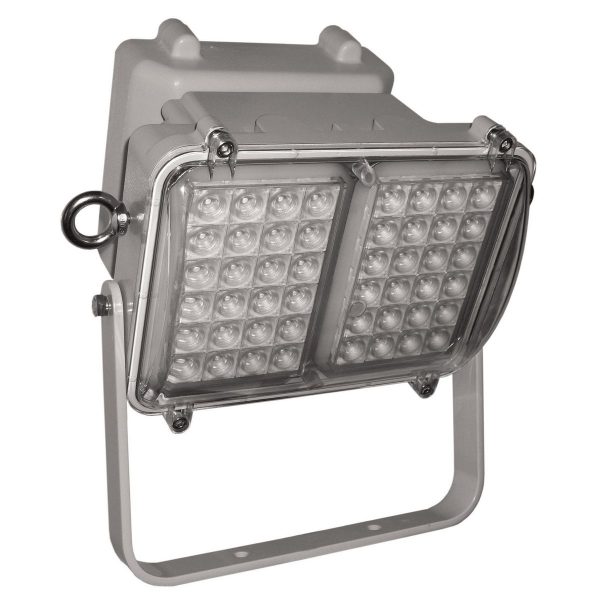

Chalmit HDL206NE Floodlight

LED Ex e modular Emergency Floodlight for Zone 2

Can be back ordered

Please enter a quantity

Share this product:

HDL206NE LED modular flood light ensures a penetrating white light at its output without any light degradation at low temperatures. It offers instant start and restrike. Added features include Low cost of installation, operation and maintenance.

  • Battery backup power provides 3 hours at 50% illumination, 90 minutes at full illumination.
  • Modular construction allows the modules to be supplied interlinked with each other to provide greater light output.
  • Can be used as a single unit – small floodlight or bulkhead or linked together to replicate a large 250W/400W floodlight.
  • Can be supplied in multiple configurations of standard or emergency modules.
  • Integrated power supply.
  • Low power consumption.
  • Rugged construction – resistant to vibration.
  • Independently photometrically tested.
  • All units supplied with 2 cable entries. Additional entries available on request.
  • IP66 and IP67.
  • Optional wire guard available for extra protection.
  • Narrow, Medium, Wide and Extra wide beam light output available.
  • Multiple mounting options available.

Advantages of HDL206NE LED Luminaire over HDL 206E Luminaire includes 17% less power consumption, Overall optical output increased by up 68%, Lumens per watt increased by 81% and 109 LM/W compared to 60 LM/W.

ApplicationZone 2 and 22
Lamp Type
  • 24 x 0.94W LEDs
  • 96 x 0.94W LEDs
  • 144 x 0.94 LEDs
Operating Temperature Range Celcius-20°C to +50°C
Certifications and Compliance
Certified Listed
  • ATEX
  • ABS
  • IP66
  • IP67
Hazardous Rating(s)Zone 2 & 22

Chalmit HDL206NE Floodlight Datasheet
