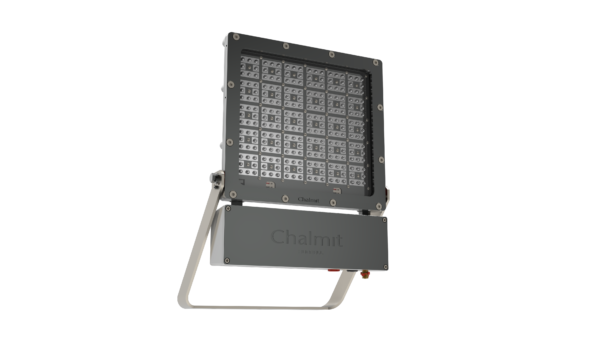

Chalmit Evolution X Floodlight

Revolutionary LED Floodlight for Zone 1 / 21

Clear

Share this product:

The next generation in Zone 1 LED luminaires, the Evolution X floodlight focuses on the need of the user by combining high powered performance with long term maintenance benefits. Providing a market leading photometric output up to 40,000 lumens, and offered with a variety of optics to efficiently illuminate any Zone 1 / 21 application, the Evolution X is a true successor to the traditional high output HID floodlights.

With no exposed flamepaths and an expected LED L70 life >200,000 hours at the maximum rated ambient of 60°C, the robust LED enclosure is effectively maintenance free. The optional benefit of a removable gearbox with excellent IP allows the maintainable components to be easily accessible, and ensures that the ground breaking Evolution X is suitable for global use in any harsh or hazardous environment.

Mounting Options
Floodlight. Pendant. High Bay. Pole/Column.

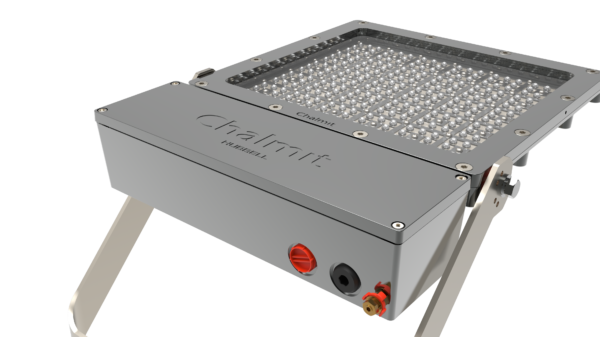

  • Slimline, sealed for life LED enclosure with no exposed flamepaths

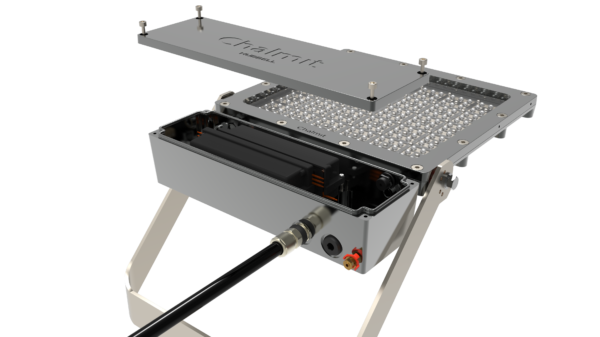

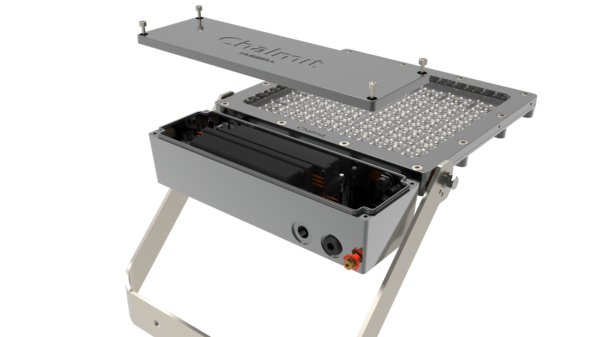

  • Easy access gearbox with captive screws
  • Optional remote gearbox with flying lead for ease of maintenance and installation

The Evolution X is a hazardous area floodlight for use in Zone 1 and Zone 21 areas. ‘Contact Us’ to get in touch with us and discuss how the next generation Evolution X Floodlight could work for you!

Std. Cat No.Delivered OutputPower ConsumptionTclassT°C (Dust)Ambient °CWeight
EVXB/20L/LE20,980 lm188WT5
T4
T100
T135
-55 to +40
-55 to +60
15.5kg
EVXB/30L/LE29,433 lm253WT5
T4
T100
T135
-55 to +40
-55 to +60
17kg
EVXB/40L/LE40,052 lm375WT5
T4
T100
T135
-55 to +40
-55 to +60
17kg
Accessories (order separately)
Pole Mounting Bracket Assembly (48-70mm Pole Diameter)SEVO4-0001
Pendant Mounting kitSEVX4-0003
Wire GuardSEVX4-0002
Anti Glare ShieldSEVX4-0001
Standard Specification
Evolution X Ex db eb LED Floodlight
Type of ProtectionEx db eb (Flameproof, Increased Safety)
Ex tb (Dust Protected Enclosure)
ATEX ClassificationGroup II Category 2 GD
Area ClassificationZone 1 and 21 areas to EN 60079-10-1 and EN 60079-10-2 with installation to EN 60079-14
CertificateEU Type Examination Certificate
CML20ATEX1114X
IECEx Certificate of Conformity
IECEx CML 20.0073X
CodingEx db eb IIB+H2 T* Gb
Ex tb IIIC T**°C Db IP6X
Refer to table for T rating and Ambient
EnclosureLM6 Marine grade aluminium body with UV resistant glass diffuser.
LED heatsink and gearbox with epoxy powder finish (RAL 7040)
Entry2 x M20 cable entries
Termination3 core 6mm² max conductor with looping
Installation3 x Ø13 mounting holes stirrup
Control GearElectronic Driver
Optical DistributionWide beam
Colour Temperature (CCT)5000K (Cool White)
Colour Rendering Index (Ra)>80
MaintenanceFront access to gearbox lid with 4x M6 captive screws
LED Lifetime @ 60°C AmbientL70 > 200,000hrs
System Life @ Ambient120,000hrs @ 25°C
Impact ProtectionIK10
Impact ProtectionIP66/67 to EN 60529
Surge Protection6kV
Electrical Supply110-277V AC, 50/60Hz
127-250V DC
