Chalmit HDL106N Floodlight

POA

LED Ex e modular Floodlight for Zone 1

Please enter a quantity

Share this product:

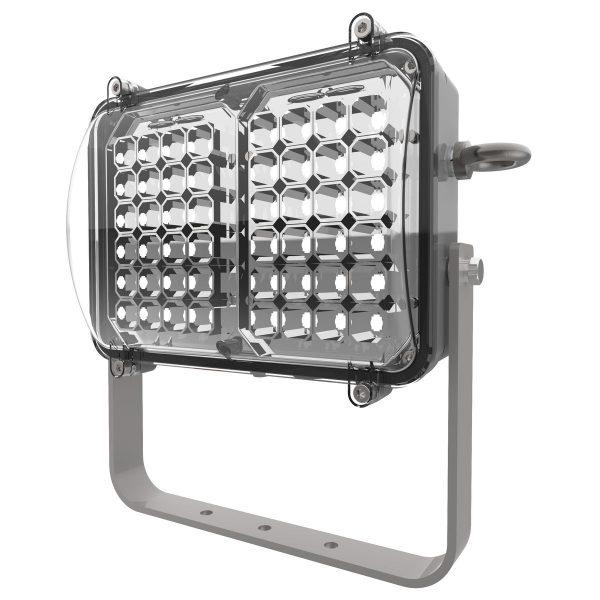

Hadar HDL106N features marine grade aluminium body with a polycarbonate lens. Suitable for use in Zone 1 & 21 applications, the 106N is easy to install, has a low power consumption and weighs only 6Kg. Optional wire guard available for extra protection.

  • Can be used as a single unit – small floodlight or bulkhead or be linked together to replicate a large 250W/400W floodlight.
  • Integrated power supply.
  • Low power consumption.
  • Rugged construction – resistant to vibration.
  • Crane Damper Bracket Available. See data sheet for more details

A Crane Damper bracket designed to minimise the vibrations experienced when the HDL106 is installed on moving offshore/ marine cranes is now available. See the datasheet in the download section for more details.

General
ApplicationZone 1 and 21
Lamp Type24 x 1W LEDs
Operating Temperature Range Celcius-20°C to +50°C
StyleFloodlight
TypeFloodlight
Certifications and Compliance
Certified Listed
  • ATEX
  • IEC
Compliance
  • IP66
  • IP67
Hazardous Rating(s)Zone 1 & 21
Industry Standard(s)
  • EN 60079-10-1
  • EN 60079-10-2
  • EN 60079-14

Chalmit HDL106N Floodlight Datasheet

Chalmit HDL106N Crane Damper Bracket Datasheet
