Overview

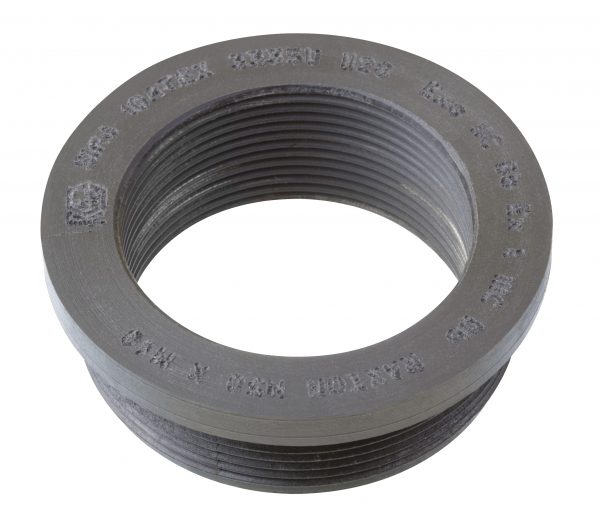

Raxton Exd/Exe Reducers effectively reduce the threaded entry diameter of an enclosure to accept a gland or fitting with a smaller thread.
Reducers may also be supplied to accept smaller glands of alternative threads. Following the basic rules in line with good engineering practices, no more than one Reducer should be used at any one time. Stopping Plugs should be fitted directly into unused entries of the equipment and not into a Reducer. Metallic Reducers are supplied with a hexagonal head as standard. Where space is a critical factor, Reducers with a circular head can be offered with a diameter equal to the A/F dimension of the hexagonal head. Nylon Reducers are Exe only and designed with a circular head. Exe Reducers are supplied with an ‘O’ ring to maintain the IP integrity of the installation.
Raxton Reducers are marked with the applicable approval number and size. Independently tested to IP68.
Certifications and Compliances
Code of Protection Categories
ATEX: I M2, Ex d IMb, Ex e I Mb, or II G, Ex d IIC Gb, Ex e IIC Gb,
Ex tb IIIC Db
IECEx: Ex d I/IIC, Ex e I/IIC, Ex tb IIIC Db
CSA: Ex d IIC Class 1, Zone 1, AEx d IIC (Brass and Stainless only)
GOST: ExdeI/IICU, ExdeIICU, ExeIIU
INMETRO: Ex de I/IIC Mb/Gb, Ex tb IIIC Db IP66/67
NEPSI: Ex d II C Gb, Ex e II C Gb, DIP A21 Ta IP6X
Nylon Reducers only:
ATEX: II 2 GD, Ex e IIC Gb, Ex tb IIIC Db
IECEx: Ex e IIC Gb, Ex tb IIIC Db
GOST: ExeIIU
INMETRO: Ex e IIC Gb, Ex tb IIIC Db IP66/67
Compliance Standards
ATEX / GOST: EN 60079-0:2009, EN 60079-1: 2007,
EN60079-7: 2007, EN 60079-31:2008
INMETRO: ABNT NBR IEC 60079-0:2008, ABNT NBR IEC 60079-1:2009,
ABNT NBR IEC 60079-7:2008, ABNT NBR IEC 60079-31:2011
IECEx: IEC 60079-0:2004, IEC 60079-1:2003, IEC 60079-7:2006-07
CSA: CAN/CSA-E79-0-95, CAN/CSA-E79-1-95, UL 2279 1997,
IEC60079-0:1998, IEC 60079-1:1998
NEPSI: GB 3836.1-2010, GB 3836.2-2010,
GB 3836.3-2010, GB 12476.1-2000
Nylon Reducers only:
ATEX / GOST: EN 60079-0:2009, EN 60079-7: 2007,
EN60079-31:2009
INMETRO: ABNT NBR IEC 60079-0:2008, ABNT NBR IEC 60079-1:2009,
ABNT NBR IEC 60079-7:2008, ABNT NBR IEC 60079-31:2011
IECEx: IEC 60079-0:2007, IEC 60079-7:2006, IEC 60079-31:2008
Certificate Details
ATEX: Sira 10ATEX1225X, Sira 10ATEX3335U
IECEx: IECEx SIR 07.0010X, IECEx SIR 12.0014X
CSA: CSA 200455-1003277 (Brass and Stainless only)
GOST: TC RUC-G B.ГБ06.B.00105
INMETRO: NCC 12.0764X
NEPSI: GYJ13.1314X
TEMPERATURE
The item is classified as a component and therefore metallic products are
not given an operating temperature range.
Nylon temperature range -20°C to 65°C, ‘O’ ring -30°C to 125°C.
GF Nylon is UL rated @ H.B. @ 1.5mm
Ingress Protection (IP):
Independently tested to IP66 / IP68 when fitted in accordance to
manufacturer’s instructions.
