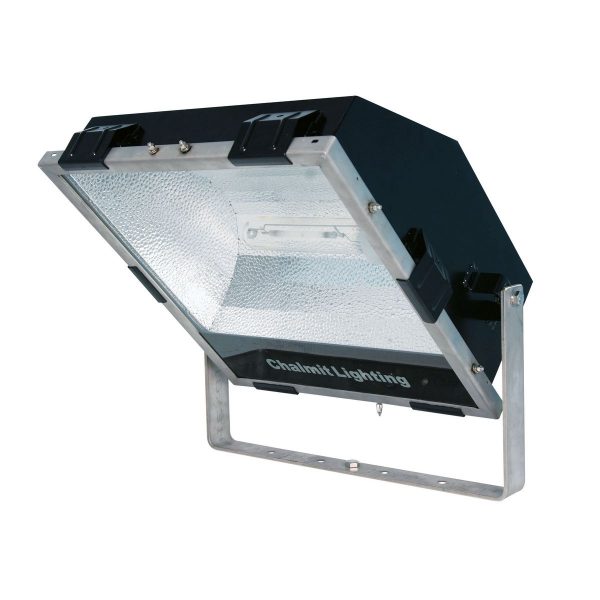

Chalmit 800 Series Floodlight

POA

HID Ex n Floodlight for Zone 2

Please enter a quantity

Share this product:

The 800 series is a range of stainless steel asymmetrical floodlights. These floods are designed for optimum light output and efficiency to ensure the minimum number of luminaires is required.Its suitable for low temperature applications (-40°C).

  • Photometrically superior asymmetric reflector.
  • Marine grade stainless steel body and toughened glass cover.
  • Suspended cover front.
  • Standard control gear for use with IEC lamps.

The 800 series is a premium range of stainless steel bodied asymmetrical beam floodlights suitable for tubular HPS and metal halide lamps from 70W to 400W and also 500W tungsten-halogen. Click the ‘Contact Us’ link above to get in touch with us and discuss how the 800 series range could work for you.

General
ATEX ClassificationGroup II Category 3 GD
ApplicationZone 2
Lamp TypeHPS, Metal Halide or Single Ended Tungsten Halogen
MaterialMarine grade 316S31 stainless steel body (Painted RAL-9005 semi gloss smooth textured – 864 version only) with toughened glass window; Industrial silicone rubber gasket.
Operating Temperature Range Celcius-40°C to +55°C
StyleFloodlight
TypeFloodlight
Certifications and Compliance
CSA File Number201067 – 1006086 (LR 116028)
Certified Listed
  • ATEX
  • GB
  • CEPEL
  • NEC
Compliance
  • IP66
  • IP67
Hazardous Rating(s)Zone 2
Industry Standard(s)
  • EN 60079-10-2
  • EN 60079-14

Chalmit 800 Series Floodlight Datasheet
