Hazardous Area Products // Lighting // Emergency Lighting // Linear // Chalmit Lomond LED (LOMD – Standard & Emergency)

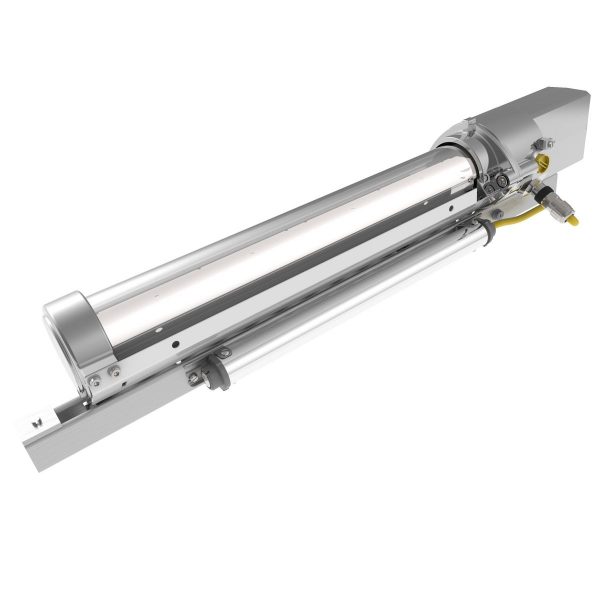

Chalmit Lomond LED (LOMD – Standard & Emergency)

LED linear with marine grade aluminium body for Zone 1 & 21

Share this product:

The Lomond is a rugged, flameproof LED luminaire. It features an integrated mounting channel for universal installation. The aluminium and glass construction make the Lomond highly resistant to aggressive chemical agents.

  • Suitable for high ambient areas.
  • Highly Energy Efficient.
  • Cool running improves T-rating.
  • IP68 version available.

Lomond Ex d LED Linear is suitable for installation in gas group IIC, making it a universal LED solution.

General Light Distribution
ATEX ClassificationZone 1 and 21 to EN 60079-10-1 and EN 60079-10-2 with installation to EN 60079-14
ApplicationZone 1 and 21
Battery TypeExternal 6V Ni-Cad (Emergency only)
Material – HousingAluminium Alloy LM6 and borosilicate glass overtube.
Operating Temperature Range Celsius-30°C to +55°C
StyleFloodlight
TypeFloodlight
Certifications and Compliance
Certified Listed
  • ATEX
  • IEC
Compliance
  • IP66
  • IP67
Hazardous Rating(s)Zone 1 & 21
Industry Standard(s)
  • EN 60079-10-1
  • EN 60079-10-2
  • EN 60079-14

Chalmit Lomond LED (LOMD - Standard & Emergency)
