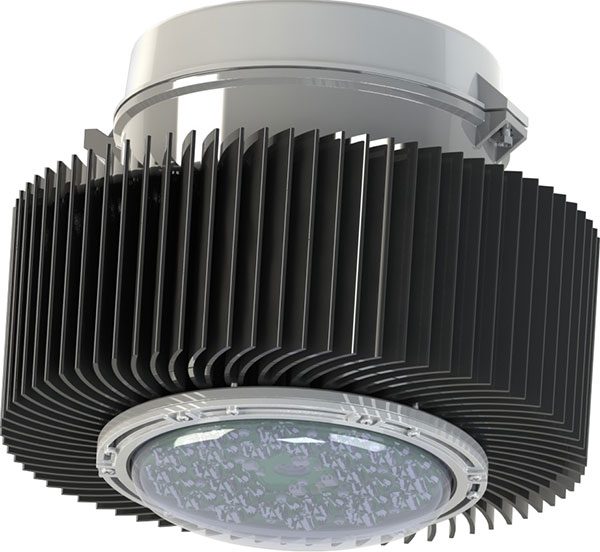

Eaton Crouse Hinds Champ® VMV LED High Bay Luminaire

A true wide area illumination LED luminaire for harsh and hazardous areas suitable for zone 2, 21 & 22

Clear

Share this product:

Ex-Pendant light fittings and floodlights of the series VMV LED

The powerful floodlight with LED technology VMV LED

The energy-saving VMV pendant light fittings and floodlights with LED technology are ideal for all general lighting applications in hazardous areas in Zone 2 and hazardous dust areas in Zones
21 and 22. With the integrated high-power LED technology, these lights can be used to replace comparable conventional light sources with an equivalent capacity of up to 1000 W.

LED technology for heavy-duty use

Due to the particularly solid construction of the housing and the vibration resistance of the LED module, the VMV floodlight is resistant to impact, shock and vibration. As a result, it represents
the ideal lighting concept for use in areas with difficult environmental conditions. Thanks to the non-sensitive LED technology, even extreme temperatures from – 40 °C up to +65 °C are not a problem. The robust, powder-coated light metal housing in the degree of protection IP66 and the impact-resistant lens meet the highest corrosion protection and mechanical resistance requirements. The advantages of the integrated, advanced LED technology with a high luminous flux and, at the same time, an extremely low energy consumption are a long service life and a high
level of efficiency. With a power consumption of 29 W to 232 W, it is ideal for replacing 70 W to 1000 W light fittings with high pressure lamps.

The best lighting technology for every application

The VMV LED pendant light fittings and floodlights series are available with 3 different custom optics:

  • Type V has a symmetric light distribution and is optimised for general area illumination.
  • Type III has an asymmetrical light distribution and is, therefore, suitable for near-edge mounting (wall mounting) for surface illumination
  • Type I has a narrow light distribution and is ideal for lighting roads and pathways.
Features
  • High power LED modules
  • Multiple drivers
  • High efficient heat sink design for optimised thermal management
  • Wide temperature range from -40 °C up to +65 °C (depends on type)
  • High degree of protection IP66 for harsh environments
  • Dimmable by control input 0 -10 V
VMV LED 3L – 11LVMV LED 13L – 17LVMV LED 21L – 25L
Type Examination Certificate (gas)DEMKO 13 ATEX 1475031XDEMKO 13 ATEX 1475031XDEMKO 13 ATEX 1475031X
EC-Type Examination Certificate (dust)MKO 13 ATEX 1305741XDEMKO 13 ATEX 1305741XDEMKO 13 ATEX 1305741X
IECEx Certificate of ConformityIECEx UL 13.0052XIECEx UL 14.0031XIECEx UL 14.0031X
Marking accd. to 2014/34/EUD II 3 G Ex nA nR IIC T6/T5 Gc
D II 2 D Ex tb IIIC T92/T87/72°C Db IP66
D II 3 G Ex nA nR IIC T6/T5 Gc
D II 2 D Ex tb IIIC T87/72°C Db IP66
D II 3 G Ex nA nR IIC T6/T5 Gc
D II 2 D Ex tb IIIC T87/72°C Db IP66
Marking accd. to IECExEx nA nR IIC T6 Gc /
Ex tb IIIC T87°C/T72 °C Db IP66
Ex nA nR IIC T6/T5 Gc /
Ex tb IIIC T81°C/T66 °C Db IP66
Ex nA nR IIC T6/T5 Gc /
Ex tb IIIC T86°C/T71 °C Db IP66
Permissible ambient temperature-40 °C up to +65 °C-40 °C up to +55 °C-40 °C up to +55 °C
Lifetime fixture200,000 h at ta = +25 °C
60,000 h at ta = +65 °C
170,000 h at ta = +25 °C
60,000 h at ta = +55 °C
170,000 h at ta = +25 °C
60,000 h at ta = +55 °C
Rated voltage120 – 277 V AC / 108 – 250 V DC100 – 277 V AC / 108 – 250 V DC100 – 277 V AC / 108 – 250 V DC
Frequency50 – 60 Hz50 – 60 Hz50 – 60 Hz
Power1)1)1)
Power factor cos ϕ> 0.9> 0.9> 0.9
Circuitelectronic driverelectronic driverelectronic driver
Dimming control input0 -10 V, 15 – 100 %0 -10 V, 15 – 100 %0 -10 V, 15 – 100 %
Protection classIII
Lamp / IlluminantLED System, scope of deliveryLED System, scope of deliveryLED System, scope of delivery
Light colour/CRI5000 K/70, 3000 K/80 on request5000 K/70, 3000 K/80 on request5000 K/70, 3000 K/80 on request
Rated luminous flux of the luminaire
(typical, ± 10 %)
1)1)1)
Dimensions (L x W x H)280 x 295 x 230 mm381 x 381 x 197 mm381 x 381 x 274 mm
Connecting terminalsL, N, PE max. 2 x 2.5 mm2L, N, PE max. 2 x 2.5 mm2v
Enclosure colourgrey/blackgrey/blackgrey/black
Enclosure materialCopper-free aluminium with epoxy-powder
coating
Copper-free aluminium with epoxy-powder
coating
Copper-free aluminium with epoxy-powder
coating
Weight8.1 kg16.3 kg20.0 kg
Degree of protection accd. to EN 60529IP66IP66IP66
Protective cover / protective bowlHeat- and impact-resistant glass 2)Heat- and impact-resistant glass 2)Heat- and impact-resistant glass 2)
1) See table luminaire data
2) Polycarbonate lens on request / frosted cover on request

Crouse Hinds Champ® VMV LED High Bay Luminaire
