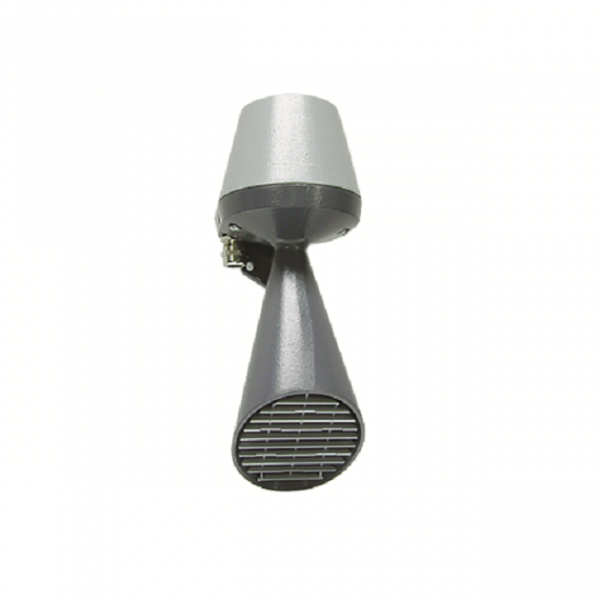

FHF HGW11 Weatherproof Hooter

Loud all-purpose signalling device for indoor and outdoor use as well as on ships.

Clear

Share this product:

Overview

The HGW signalling hooter is a signalling device for warning and calling which, thanks to its sturdy housing, can be used indoor in both dry and damp rooms as well as outside. The seawater-proof aluminium housing makes the device also suitable for use on ships as well.

Design
The driver system consists of a strong, non-polarised electromagnet. The housing is made of seawater-proof aluminium. The signalling hooter is available for all usual supply voltages. The version HGWR 11 for 230 VAC is equipped with an additional telephone call relay. Cable entry is effected via an M 20 gland. The hooter with call relay has two cable glands.

Features

  • Corrosion-resistant and very sturdy
  • Aluminium housing
  • Approval “German Lloyd”
  • Protection degree IP 56
  • Volume: approx. 108 dB(A) at 1 m
General
Area classificationWeatherproof
Operating temperature-20°C to +60°C
Ingress protectionIP56
MaterialAluminium
Entries1 x M20
Weight2.7kg
Voltage6-230Vdc, 6-240Vac
Sound outputMax: 108dB, 1m (±3dB

FHF HGW11 Weatherproof Hooter Datasheet
