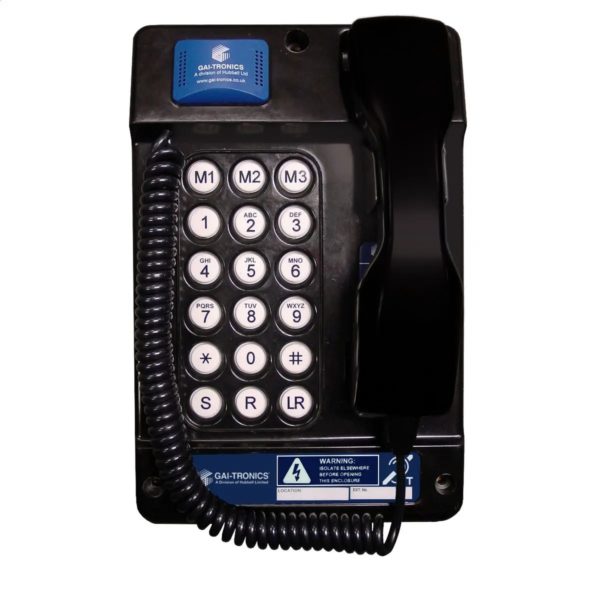

Gai-Tronics Auteldac 5 Analogue Telephone

The Auteldac 5 (A5) telephone is an ATEX and IECEx approved, weather resistant unit, designed to withstand arduous industrial atmospheres and environmental extremes

Please enter a quantity

Share this product:

The Auteldac 5 (A5) telephone is an ATEX and IECEx approved, weather resistant unit, designed to withstand arduous industrial atmospheres and environmental extremes.

Certified for safe operation in hazardous areas, the Auteldac 5 carbon loaded glass filled polyester
enclosure eliminates risk of rust and corrosion.

Features such as ‘electronic on-hook sensing’ and ‘electronic tone ringer’ ensures an enclosure protection of up to IP66. Should the handset be left off-hook, the A5 will automatically revert to on-hook state after a period of 7 minutes (optional).

Auteldac 5 telephones come complete with an integral ringer with volume control and secondary beacon / external sounder actuator as standard. An inductive coupler is fitted to aid the hard of hearing. For hands-free telephone use, the Auteldac 5 headset* version can be provided.

Connectivity: Standard Analogue

The standard analogue unit provides basic telephone functions and can be connected to any standard two wire telephone line, including FXS ports, analogue PABX lines and PSTN.

  • IECEx certified
  • Ex II 2 G & Ex II 2 GD ATEX Certified telephone for Gas and Dust
  • Zone 1 & 2, Zone 21 & 22 Compliant models
  • (EMC Directive 2014/30/EU, Low Voltage
  • Directive 2014/35/EU)
  • Fully compliant with TBR21 / TBR38
  • Full keypad with 3 programmable memory buttons, or CB (0 button) variant
  • Optional removable headset*
  • 90dB sounder (adjustable)
  • Beacon / external sounder actuator
  • Robust and weather resistant up to IP66
  • Extended cord length available

General
CE Compliant Yes
Colour Black
Operating Temperature -20° C up to +60 °C
Output Level Ringer 90 dBA @ 2 ft.
Signal Type Analogue
Type 18 Button
Weather Resistant Yes
Dimensions
Dimensions 5.5 in x 7.5 in x 11.5 in
Height 11.5 in
Length 5.5 in
Weight 7 lb
Width 7.5 i

Electrical Ratings
Signal Phone Line



Certifications and Compliance
CE Compliant Yes

Download GAI-TRONICS Auteldac 5 Analogue Telephone Datasheet
