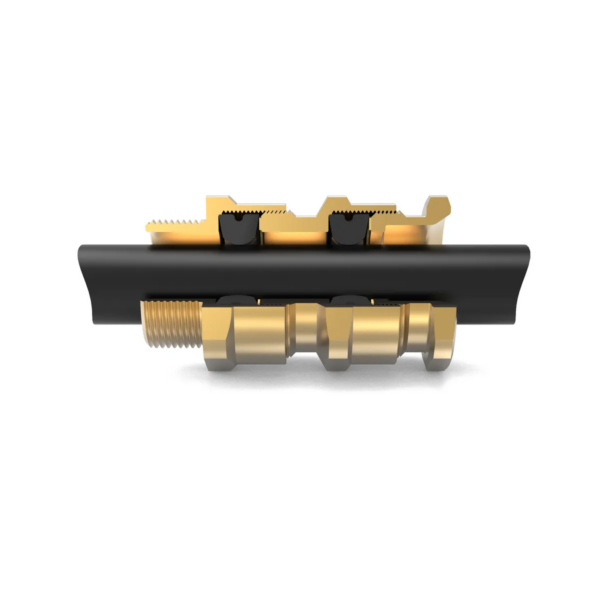

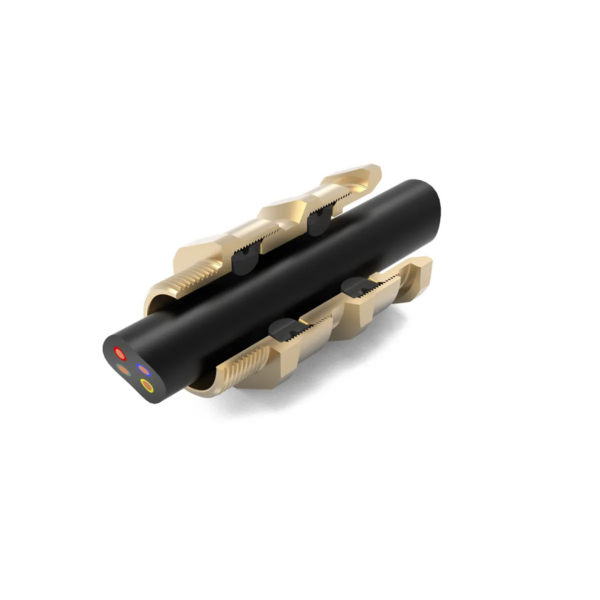

Hawke Apex 423 Cable Gland

Flameproof, Increased Safety, Dust Protection and Restricted Breathing, Certified ATEX / IECEx / UKEX

Apex Cable Glands offer exceptional value for money without compromising on performance or reliability.

Please enter a quantity

Share this product:
The Apex 423 dual certified Exe/Exd double seal cable gland is intended for use on non-armoured elastomer and plastic insulated cables. This cable gland may be used with braided cables where the braid and outer sheath pass into the enclosure. The braid must then be suitably terminated inside the enclosure. For Exd applications, the cable must be suitable in compliance with with EN 60079-14.
  • Simple and easy to install
  • Double seal arrangement for extra protection
  • Elastomeric Exd Flameproof and Exe Increased Safety seals on cable outer sheath
  • Suitable for use with braided cable (where application allows)
  • Also fully compliant with EN 62444

General
ApplicationHazardous Areas Zone 1, Zone 21, Zone 2, Zone 22
Ingress Protection
  • IP66
  • IP67Deluge Protection to DTS01
MaterialManufactured in Brass, Nickel Plated Brass or 316L Stainless Steel
SeriesCable Glands for Group II Hazardous Areas

Certifications and Compliance
Hazardous Rating(s)
  • Ex II 2G Ex db eb IIC Gb
  • 3G Ex nR IIC Gc
  • 1D Ex ta IIIC Da
Industry Standard(s)
  • IEC/EN 62444 (Anchorage Type A)
  • IEC/EN 60079-0, 1, 7, 15, 31
RatingsIK08 to IEC 62262

Hawke Apex 423 Cable Gland Datasheet
