The FireMate safety critical connector has been developed to be used on underground and overground rail networks, commercial and public buildings where it is critical for equipment to work during an evacuation and rescue situation.
Tested to the latest fire standards BS EN50200:2006 and BS8434-2:2003 A2 2009 our connector will maintain its electrical and structural integrity during the harshest of fire conditions. The product is designed to be used in escape route safety equipment; emergency lighting circuits; fire alarms; voice alarms; shutdown systems; fire detection.
- Unique fireproof rear intumescent seal to accommodate a wide range of cables
- Quick connect via a 4 start thread Earth and Key Location Screw

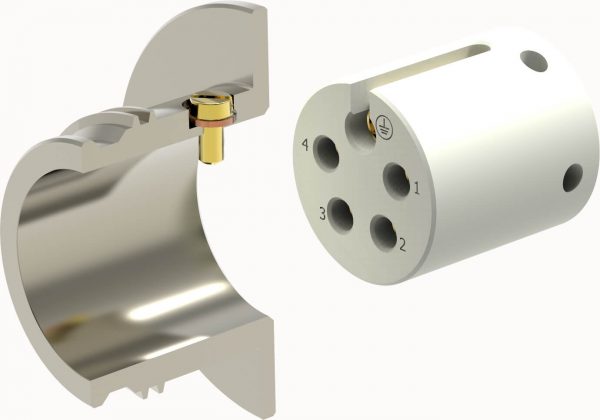

- Unique high temperature pin and socket insert
- Integral moulded keyway to ensure fool proof assembly
| Technical Data | |
|---|---|
| Construction and Test Standards: | BS5839-1 2013 section 26.2 e), BS EN50200:2006, BS8434-2:2003 + A2 2009, BS EN61984, BS5266-2016 -8.2.2 b d, GPSD (2001/95/EC) |
| Ingress Protection: | IP66 |
| Material: | Nickel Plated Brass |
| Operating Temperature: | Range: -25°C to +70°C |
| Sealing Arrangement: | Single compression seal |
| Earth: | Electrical continuity using earth pin and body connection |
| Cable Type: | Unarmoured fire rated cable |
| Number of Cores: | 4 + Earth Dali ready |
| Core Size: | Up to 6mm² |
| Current range: | 16 Amps |
| Voltage range: | 240 V AC |
| Assembly Instructions | AI 503 |
| Max No. of make & break operations (EN61984): on and off load |
≥500 |
For order codes, dimensions, insert selection and dissipated wattage calculations please download the datasheet from the ‘Downloads’ section of this page.
