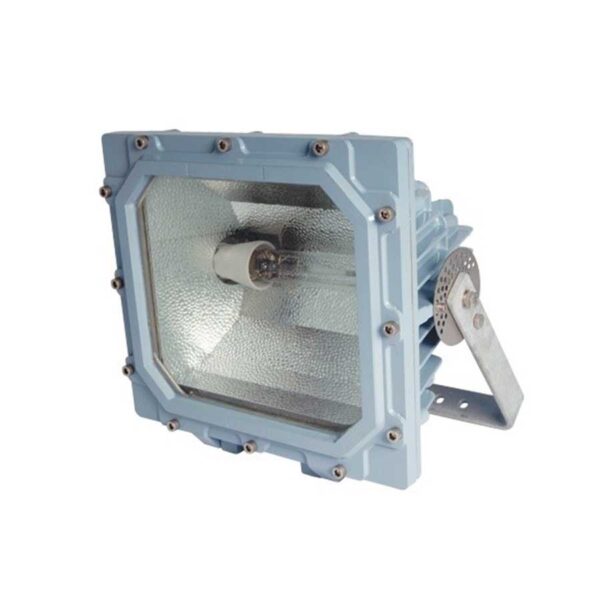

Zone 1 Exd Flameproof Floodlight
| Std. Cat Ref. | Wattage | Lamp Type | Lampholder | T Class | T °C(Dust) | Ambient °C |
| 64ED/400/MS | 400W | HPS & Metal Halide | E40 | T3 | 160 | -20°C to +55°C |
Lamp types
SON/T – 150W, 200W, 400W
MBI-T – 150W, 200W, 400W
MBFU – 250W and 400W
Power Supply
220V, 230V, 240V or 254V 50Hz Available via a multi-tapped
ballast.
All luminares factory set to 240V 50Hz. 60Hz versions also
available.
Power factor
Better than 0.85
Terminals
3 core up to 6 mm2 conductors with looping. Terminals for live, neutral & earth are provided. Internally
earthed, external earth terminal as standard.
Cable entries
Two entry terminal box with M20 x 1.5 tapping, other entries available on request.
Supplied with 1 x transit plug and 1 x Ex blanking plug.
Cable entry devices (ie. glands) must maintain the IP rating for
the luminaire.
Materials
Main Body LM6 aluminium with epoxy paint finish
as standard.
Lampglass Toughened soda lime glass plate.
External fasteners Stainless steel.
Weight
Discharge lamp versions – 31.0Kg.
Tungsten halogen lamp versions – 26.0Kg
Suspension
Stirrup bracket pre-drilled with 2 holes 13mm diameter. Complete with locking and aiming quadrant.
