Hazardous Area Products // Lighting // Flood Lighting // Chalmit ScotiaEx Floodlight

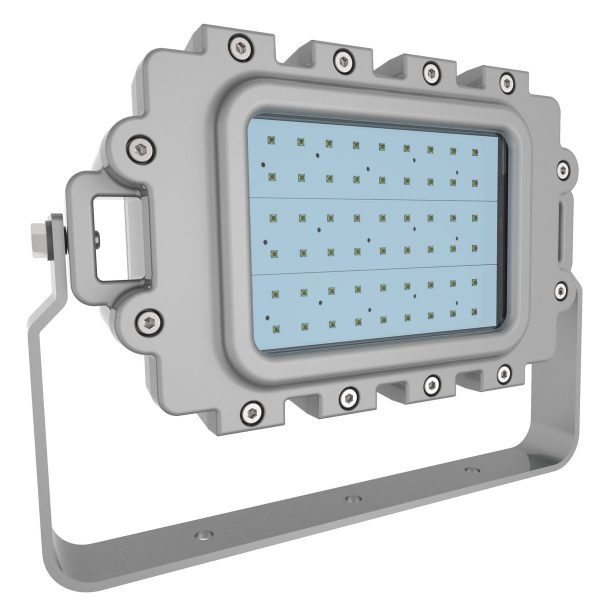

Chalmit ScotiaEx Floodlight

LED Ex d e Floodlight for Zone 1

Clear

Share this product:

The ScotiaEx is a low energy floodlight with an instant on output delivering 110,000 maintenance free hours at 25 °C. Its excellent temperature range of -50°C to 55°C makes it a global lighting solution providing high output lighting at extreme temperatures.

  • Instant on crisp white light output.
  • Highly Energy Efficient.
  • 110,000 maintenance free hours at 25°C.
  • Lower power consumption than HID lamps.
  • Low temperature applications to -50°C.
  • Crane Damper Bracket available

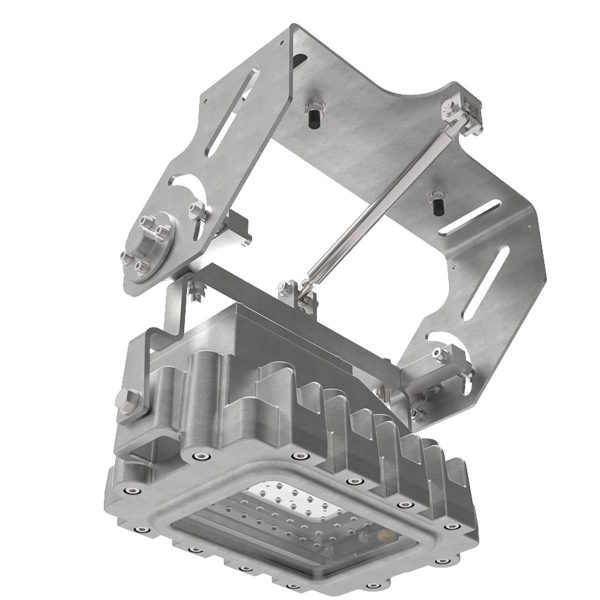

A Crane Damper bracket designed to minimise the vibrations experienced when the ScotiaEx is installed on moving offshore/ marine cranes is now available. See the datasheet in the download section for more details.



Std. Cat NoDelivered OutputPower ConsumptionTclassT °C (Dust)Ambient °CWeight
SCOD/07L/LE7519 lm78 WT6
T5
85
100
-20 to +40
-20 to +55
21KG
SCOD/08L/LE8984 lm99 WT6
T5
85
100
-20 to +40
-20 to +55
21KG
SCOD/11L/LE10357 lm106 WT6
T5
85
100
-20 to +40
-20 to +55
21KG
SCOD/12L/LE11727132 WT6
T5
85
100
-20 to +40
-20 to +55
21KG



General
ATEX ClassificationGroup II Category GD
ApplicationZone 1, 21 and in Gas Groups IIA, IIB and H2
Lamp TypeLED
MaterialAluminium alloy LM6.
Operating Temperature Range Celcius-50°C to +55°C
StyleFloodlight
TypeFloodlight
Certifications and Compliance
Certified Listed
  • ATEX
  • IEC
  • EAC
  • INMETRO
ComplianceIP66
Hazardous Rating(s)Zone 1 & 21
Industry Standard(s)
  • EN 60079-10-1
  • EN 60079-10-2
  • EN 60079-14

Chalmit ScotiaEx Floodlight Datasheet

Chalmit ScotiaEx Floodlight Crane Damper Bracket Datasheet
