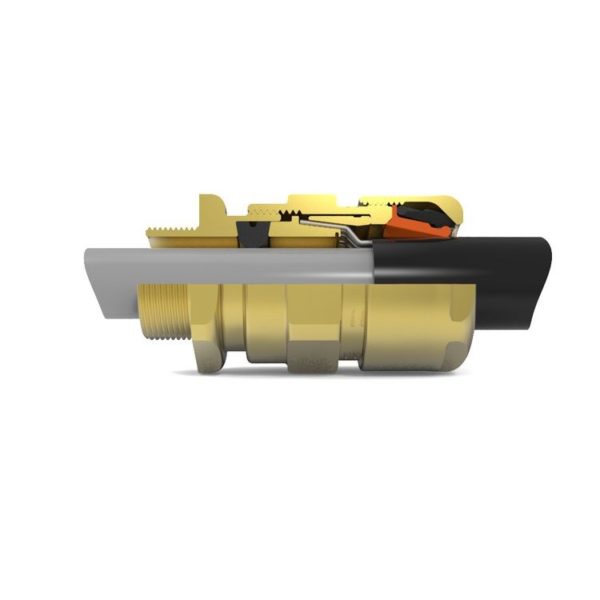

Hawke 501/453/RAC Cable Gland

Flameproof, Increased Safety, Dust Protection. Certified ATEX / IECEx / c CSA us

Clear

Share this product:

The 501/453/RAC Cable Gland is dual certified Exe/Exd, robust and for use with single wire armour ‘W’, wire braid ‘X’, steel tape armour ‘Z’, elastomer and plastic insulated cables. The gland provides an elastomeric seal on the cable inner sheath, and a low smoke, zero halogen IP and retention seal onto the cable outer sheath. See technical section for installation rules and regulations

  • Elastomeric Exd flameproof seal on cable inner sheath
  • Reversible Armour Clamp – For all types of armour and braid
  • Patented Cable Gland Tightening Guide – Helps prevent damage caused by over tightening
  • Unique Rear Seal – Offering ultimate sealing over an extremely wide cable acceptance range
General
ApplicationSuitable for use in Zone 1, Zone 2, Zone 21 and Zone 22 and in Gas Groups IIA, IIB and IIC.
Ingress ProtectionIP66, IP67 and IP68 (30 metres for 7 days) to IEC/EN 60529 and NEMA 4X
MaterialBrass, NP Brass or Stainless Steel
Operating Temperature-60°C to +100 °C
SeriesHazardous Area Cable Glands
Certifications and Compliance
ATEX File NumberCML 19ATEX1167X CML 19.0045X
CSA File NumberCSA1015065
Certification
  • IEC/EN 60079-0, IEC/EN 60079-1, IEC/EN 60079-7 and IEC/EN 60079-31
  • UL 60079-0, UL 60079-1, UL 60079-7, UL 2225
  • CSA 22.2 No: 60079-0, CSA 22.2 No: 60079-1, CSA 22.2 No: 60079-7, CSA 22.2 No: 60079-31
  • ISA 60079-31
Hazardous Rating(s)
  • Flameproof Exdb IIC Gb, Increased Safety Exeb IIC Gb and Dust Extb IIIC Db Ex II 2 GD
  • Flameproof AExd IIC Gb, Increased Safety AExe IIC Gb and Dust AExtD Zone 21
  • DTS01

501 453 RAC Cable Gland Datasheet
