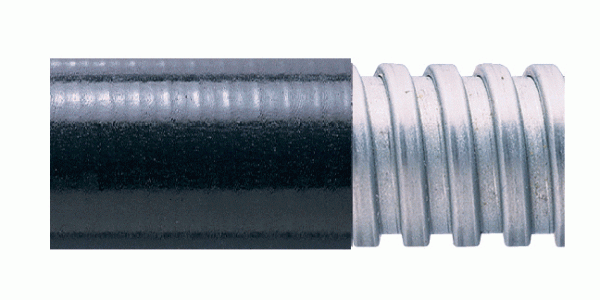

Kopex FSH Flexible Conduit

High Temperature – Liquid Tight Conduit. Stainless Steel AISI 316L Core String Packed with Thermoplastic Rubber Covering.

Clear

Share this product:

Type FSH

Stainless steel, high temperature – liquid tight conduit

  • Stainless Steel Core – String packed with thermoplastic rubber covering
  • Flame dies in less than 30 seconds after ignition source is removed
  • Temperature range – Static applications: -50ºC to +130ºC
    Temperature range – Dynamic applications: -5ºC to +130ºC
  • Up to IP67 rating (with appropriate fitting)
  • High UV resistance
  • High flexibility – high fatigue life
  • Halogen free
  • Self extinguishing

Typical applications

  • Utility – Power Generation
  • Rail Traction – low temperature flexing

Approvals

  • BSI Kitemark KM-90009
  • CE Mark to the Low Voltage Directive
Part No.Nominal Conduit SizeUS
Conduit Size
Outside DiameterInside DiameterCoil Lengths (m)
FSH031016mm3/8”17.8mm12.5mm10
FSH033016mm3/8”17.8mm12.5mm30
FSH041020mm1/2”21.1mm15.9mm10
FSH043020mm1/2”21.1mm15.9mm30
FSH051025mm3/4”26.4mm21.0mm10
FSH053025mm3/4”26.4mm21.0mm30
FSH061032mm1”33.1mm26.4mm10
FSH062032mm1”33.1mm26.4mm20
FSH071040mm1 1/4”41.8mm35.4mm10
FSH072040mm1 1/4”41.8mm35.4mm20
FSH081050mm1 1/2”47.5mm40.4mm10
FSH082050mm1 1/2”47.5mm40.4mm20
FSH091063mm2”59.7mm51.6mm10
FSH092063mm2”59.7mm51.6mm20
