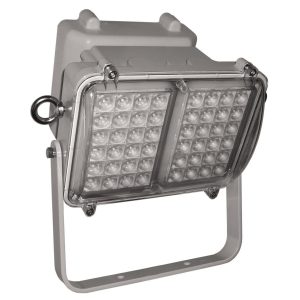

Petrel Mini LED Area Floodlight

Mini LED Area Floodlight, Zone 1,21,2 & 22


Share this product:

The brand new LED Area Floodlight range is a highly efficient luminaire that boasts a class leading light output from 4,500 to 6,000 Lumens (Subject to variant).

Certified for use in Zone 1, 21, 2, 22 this is a modern and versatile range of luminaires. The high quality corrosion resistant aluminium body gives excellent durability in any Zone 1 & 2 hazardous environment. The LED light engine provides a long service life which is virtually maintenance free. All products in the range are offered with a light engine warranty of up to 5 years. The whole range offers industry leading performance in terms of lumen per watt efficacy.

  • Low maintenance LED light source
  • Industry leading performance in terms of lumen per watt efficacy
  • Rated to IK10 (subject to variant)
  • High quality corrosion resistant aluminium alloy body
  • Durable construction
  • Long service life with light engine warranty of up to 5 years
  • Virtually maintenance free
  • Steel swivel mounting bracket (Stainless Steel option available on request)
  • A simple and robust design ensuring that the product is easy to install and use
  • Supplied with tempered glass lens as standard with optional chemical and abrasion resistant polycarbonate lens

Ordering Information:

Part NumberDescriptionLight OutputPower
ALED2/G/Z1/045200mm Frame Zone 1 Glass Lens4,750lm45W
ALED2/P/Z1/045200mm Frame Zone 1 Polycarbonate Lens4,500lm45W
ALED2/G/Z1/045/A5200mm Frame Zone 1 Glass Lens Pre Wired4,750lm45W
ALED2/P/Z1/045/A5200mm Frame Zone 1 Polycarbonate Lens Pre Wired4,500lm45W
ALED2/G/Z2/045200mm Frame Zone 2 Glass Lens5,750lm45W
ALED2/P/Z2/045200mm Frame Zone 2 Polycarbonate Lens5,500lm45W
ALED2/G/Z2/045/A5200mm Frame Zone 2 Glass Lens Pre Wired5,500lm45W
ALED2/P/Z2/045/A5200mm Frame Zone 2 Polycarbonate Lens Pre Wired5,500lm45W
ALED2/G/IND/045200mm Frame Industrial Glass Lens5,750lm45W
ALED2/P/IND/045200mm Frame Industrial Polycarbonate Lens5,500lm45W
ALED2/G/IND/045/A5200mm Frame Industrial Glass Lens Pre Wired5,750lm45W
ALED2/P/IND/045/A5200mm Frame Industrial Polycarbonate Lens Pre Wired5,500lm45W


Specifications & Options
MaterialCorrosion resistant aluminium alloy with tempered glass lens. Abrasion and chemical resistant hard coated
polycarbonate lens available as an option (-25°C to + 55°C)
Cable entries2 x M20 or fixed flying lead
Electrical connections4mm2 cage clamp for single or multi-stranded conductors
Light sourceHigh Efficiency, maintenance free, long life LED array
Light output Z1up to 5,000lm @45W
Light output Z2up to 6,000lm @45W
Supply voltage (s)120V- 240V AC 50/60 Hz as standard
Installation / MountingSteel swivel mounting bracket
Control gearIntegral within the luminaire
Dimensions200mm x 254mm x 257mm (As per diagram overleaf)
Specifications & Options
Label Marking Z1II 2 G Ex eb mb IIC T4 Gb
II 2 D Ex tb IIIC T135°C Db
Label Marking Z2II 3 G Ex ec mc IIC T6 Gc
II 3 D Ex tc IIIC T85°C Dc
Certificate No.s Z1CML 17ATEX3027X
CML 21UKEX31015X
IECEx CML 17.0018X
Certificate No.s Z2CML 17ATEX3036X
CML 21UKEX31016X
IECEx CML 17.0018X
Zoned areasZones 1, 21, 2, 22
Ambient range (max)-40°C to +55°C
IP ratingIP66 & IP67
IK ratingIK8+ Glass Lens
IK10 Polycarbonate Lens

Petrel Mini Area Light Datasheet
